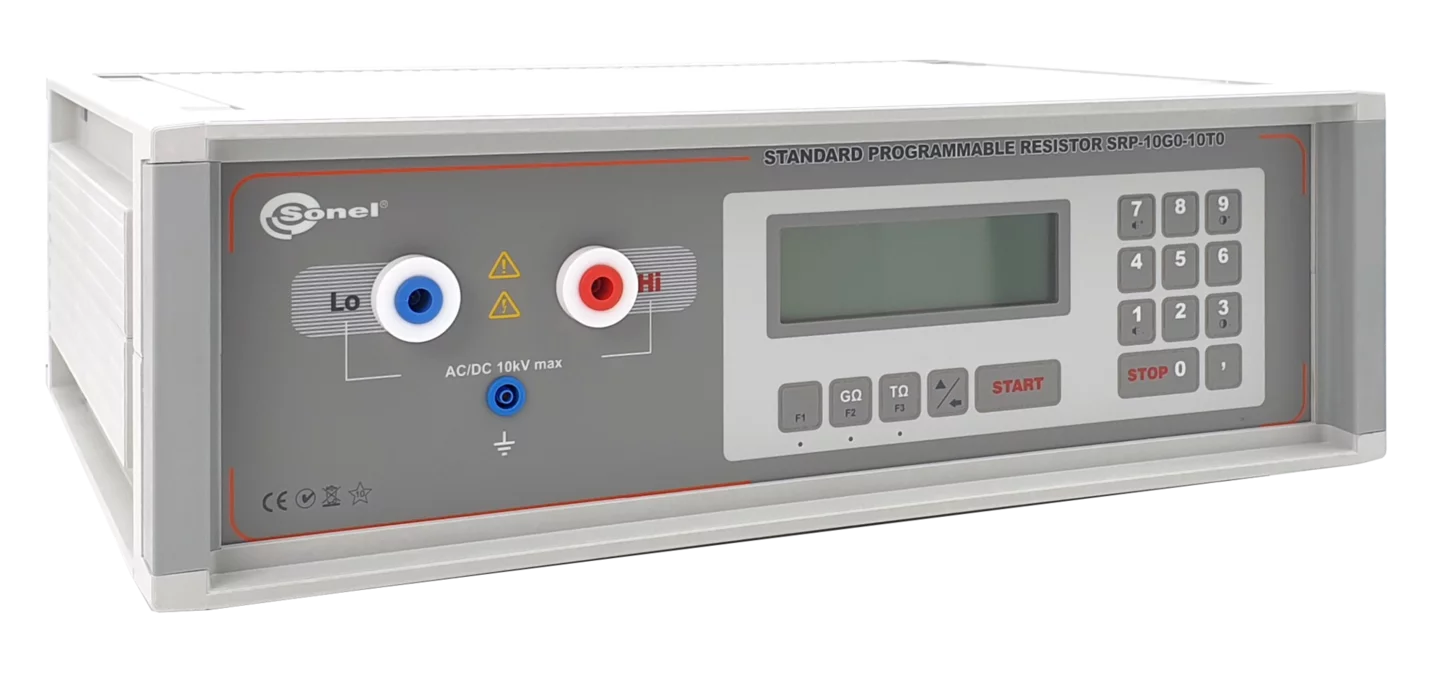

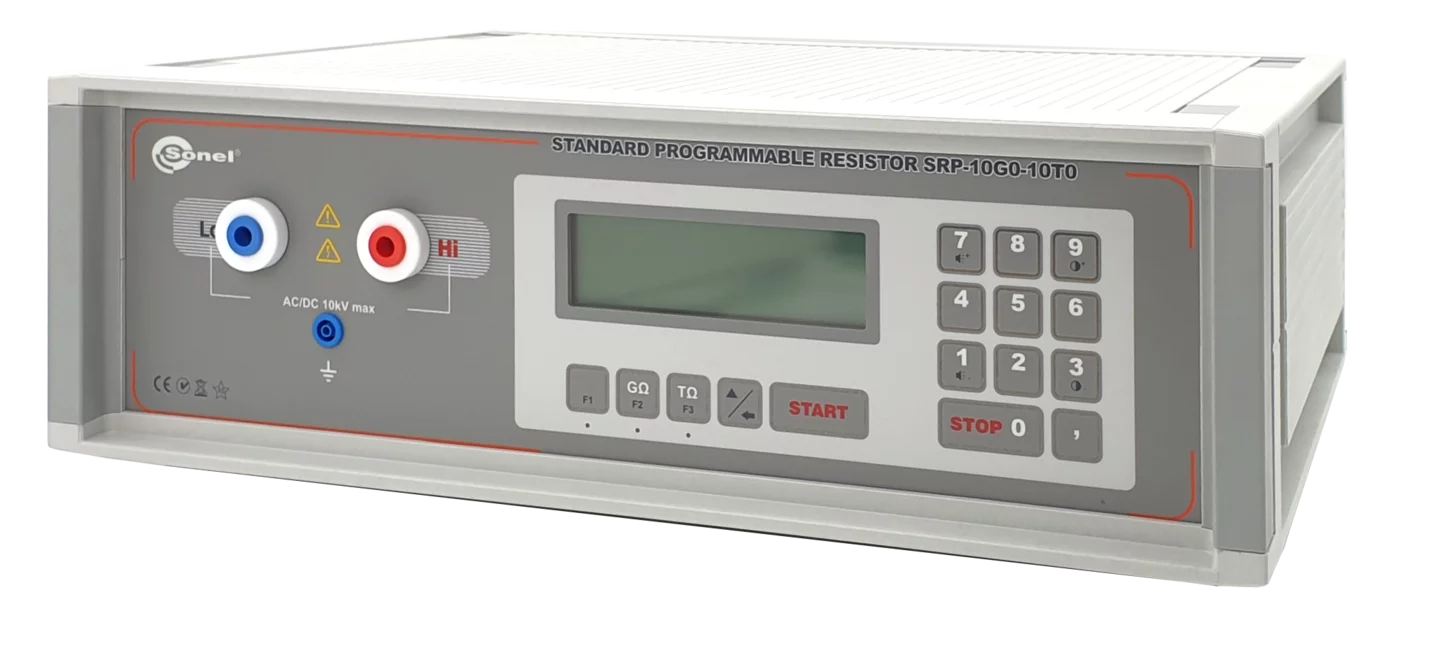

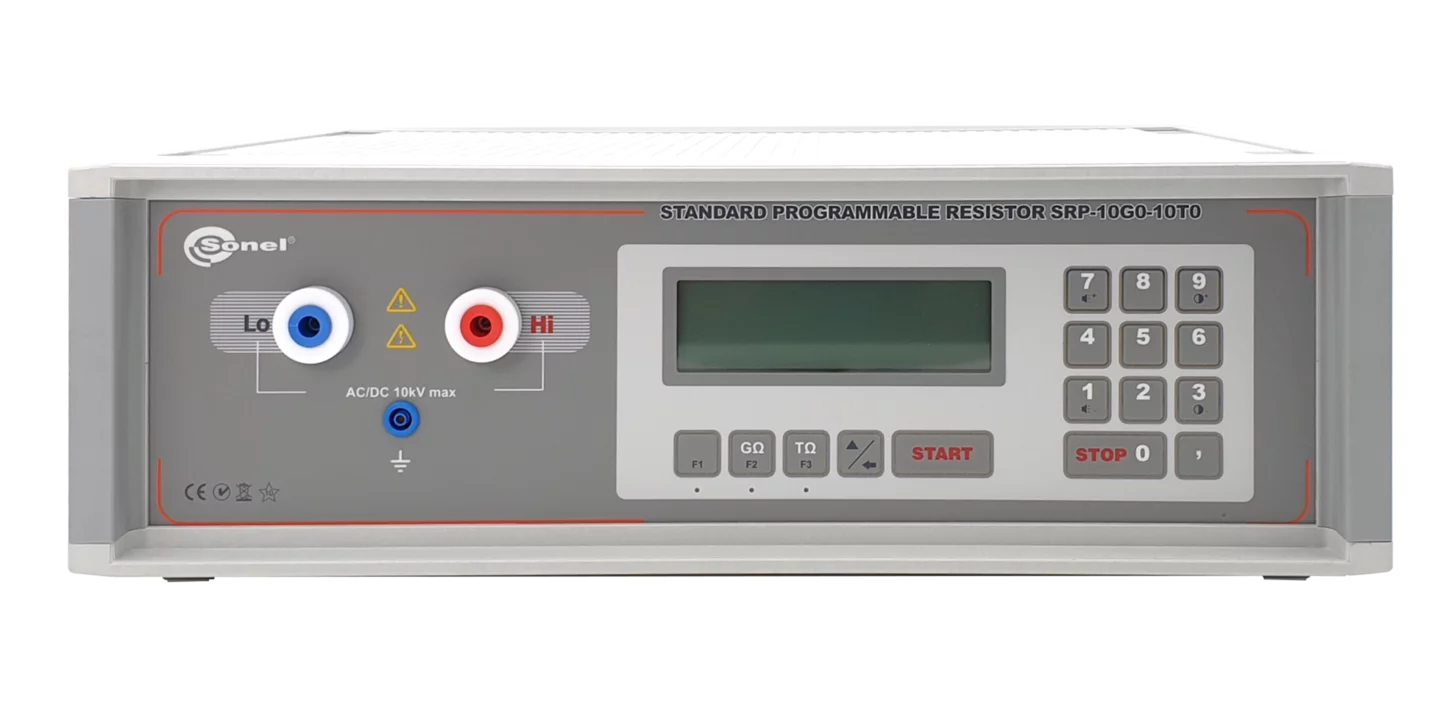

SRP-10G0-10T0
Standard programmable resistor
Kolleksiyalar
Tavsif
The SRP-10G0-10T0 standard programmable resistor is a source of high resistances used as standard equipment for calibration and testing of analog and digital insulation resistance meters.
The resistance obtained thanks to this resistor can be kept for a long time under external direct voltage up to 10 kV.
The required resistance is set on the calibrator via a keypad. Setting the required value is automatic thanks to the precision commutation of the resistive matrix. The control processor calculates the required resistor combination, ensuring the correct precision of the obtained resistance.
Xususiyatlar
| Measurement functions | Display range | Resolution | Accuracy |
|---|---|---|---|
| Resistance | 10 GΩ...10.0 TΩ | from 10 GΩ | from 1% s.v. |
s.v.- set value
Other technical specifications:
- Supply voltage: 100…240 V AC (50/60 Hz)
- Maximum power consumption: 75 VА
- Operating temperature range: 10...30°C | 50...86°F
- Maximum current in measuring circuit: 3 mА
- Maximum operating voltage: 10 000 V DC
- Long-term resistor stability: <1%
