PQM-750
Power quality analyzer
Коллекции
Описание

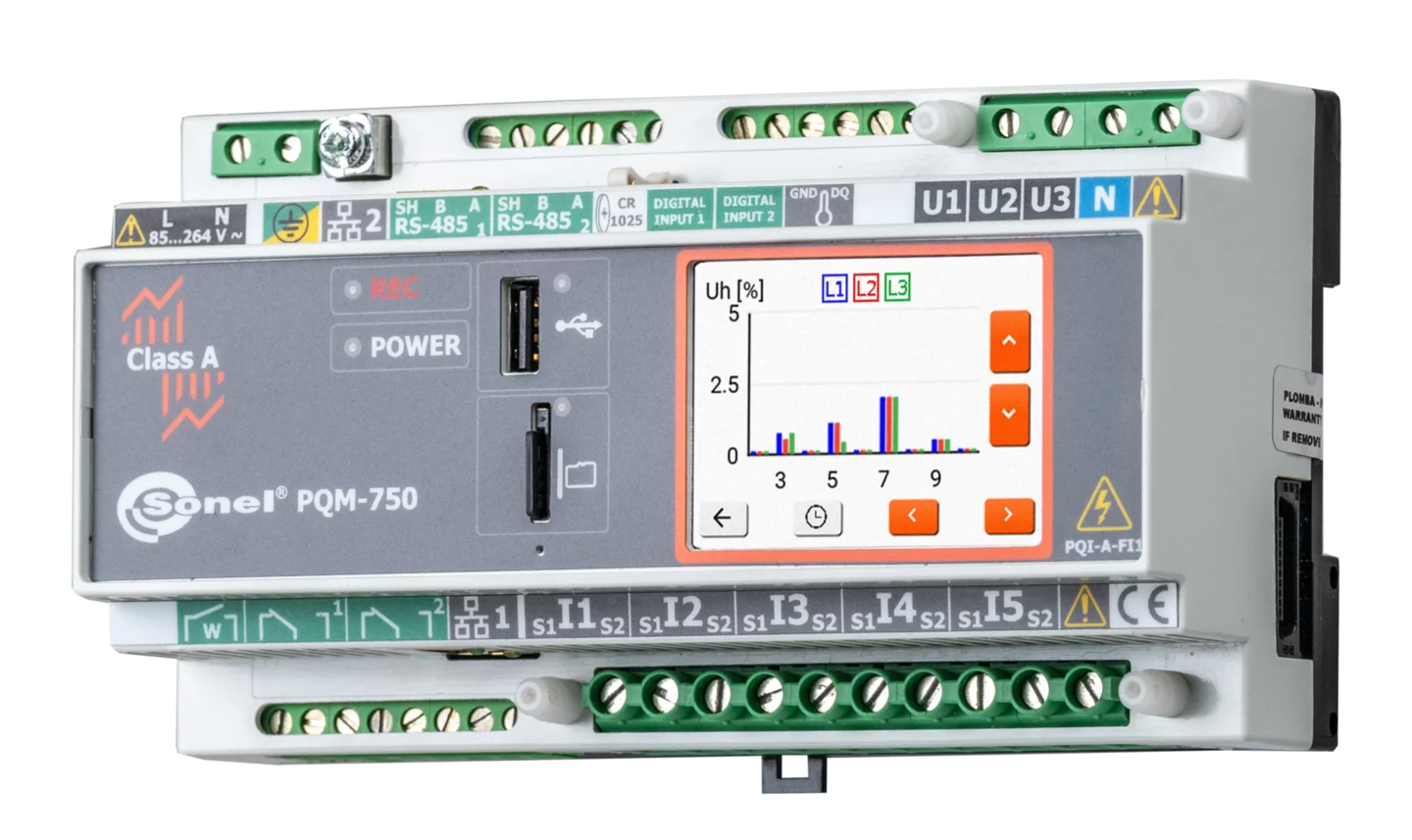

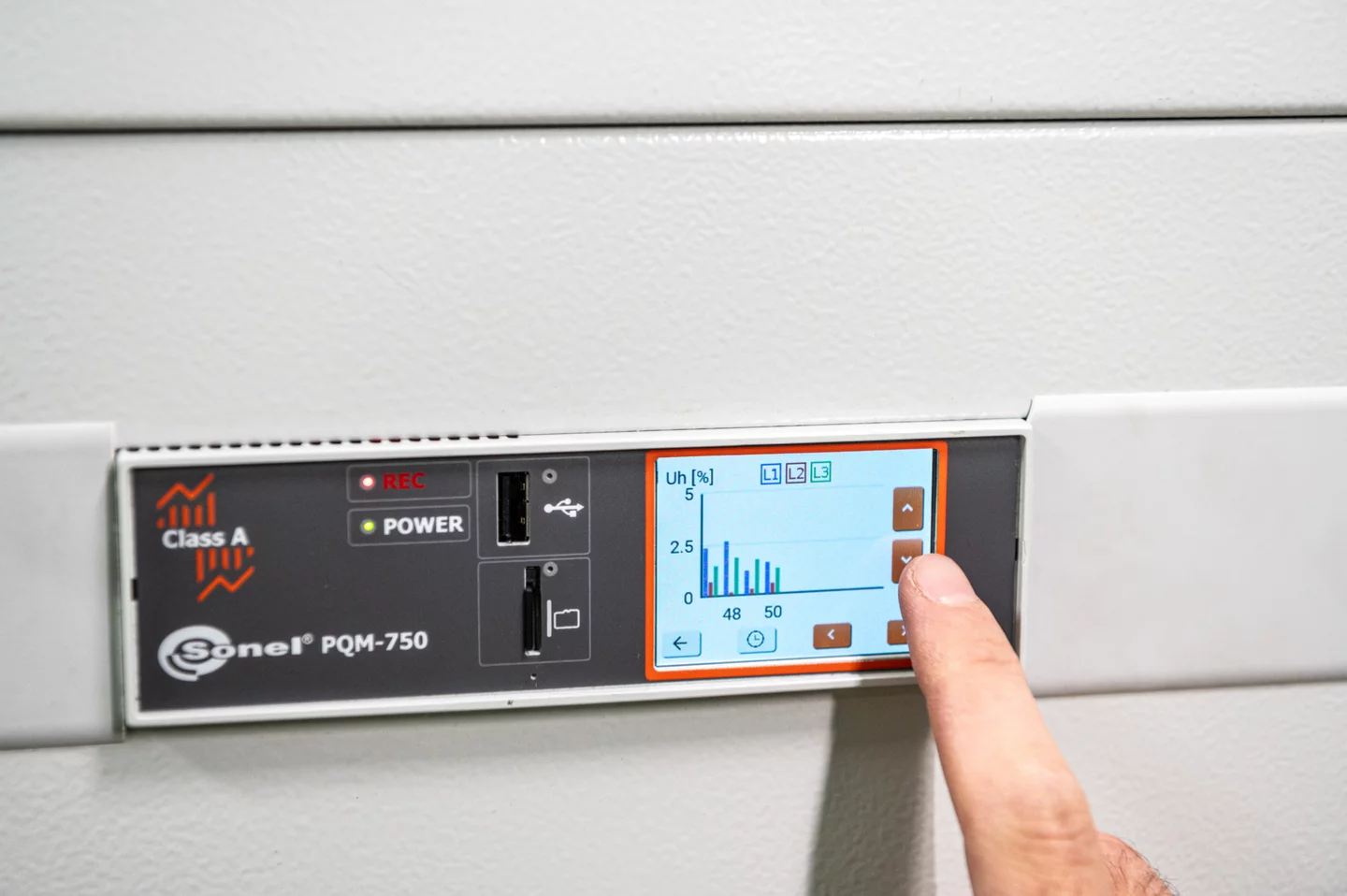

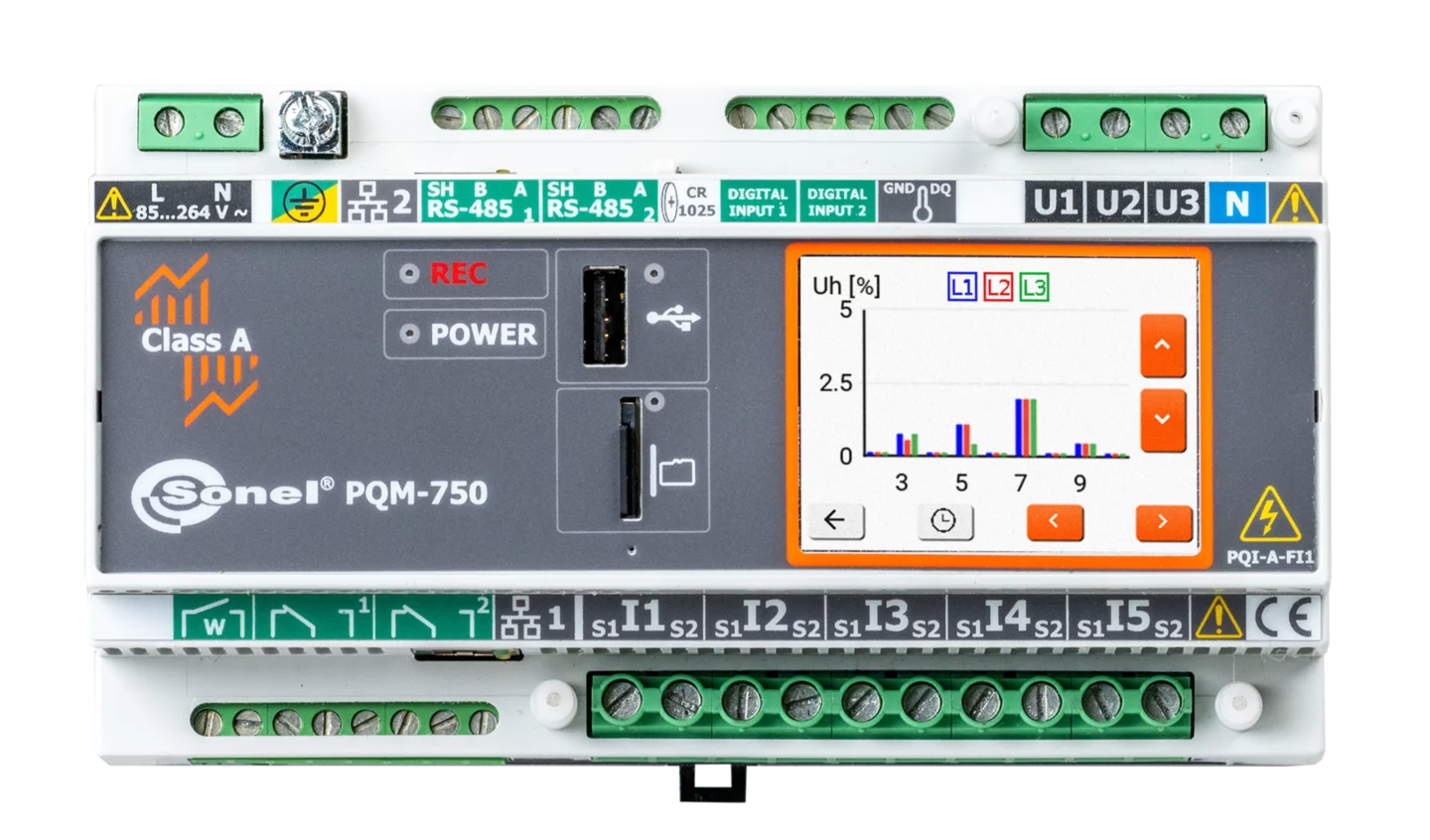

Stationary, modular, comprehensive
Stationary meter designed to measure and record power supply parameters for compliance with standards and applicable laws, and with the ability to verify preset terms of a power sale/purchase contract.
Made in class A. Designed to be mounted on a DIN rail (with the possibility of mounting on a wall in a cabinet). Modular design allows adding new modules to expand the capabilities of the meter. The instrument allows measurements in 50 Hz, 60 Hz and 400 Hz networks.

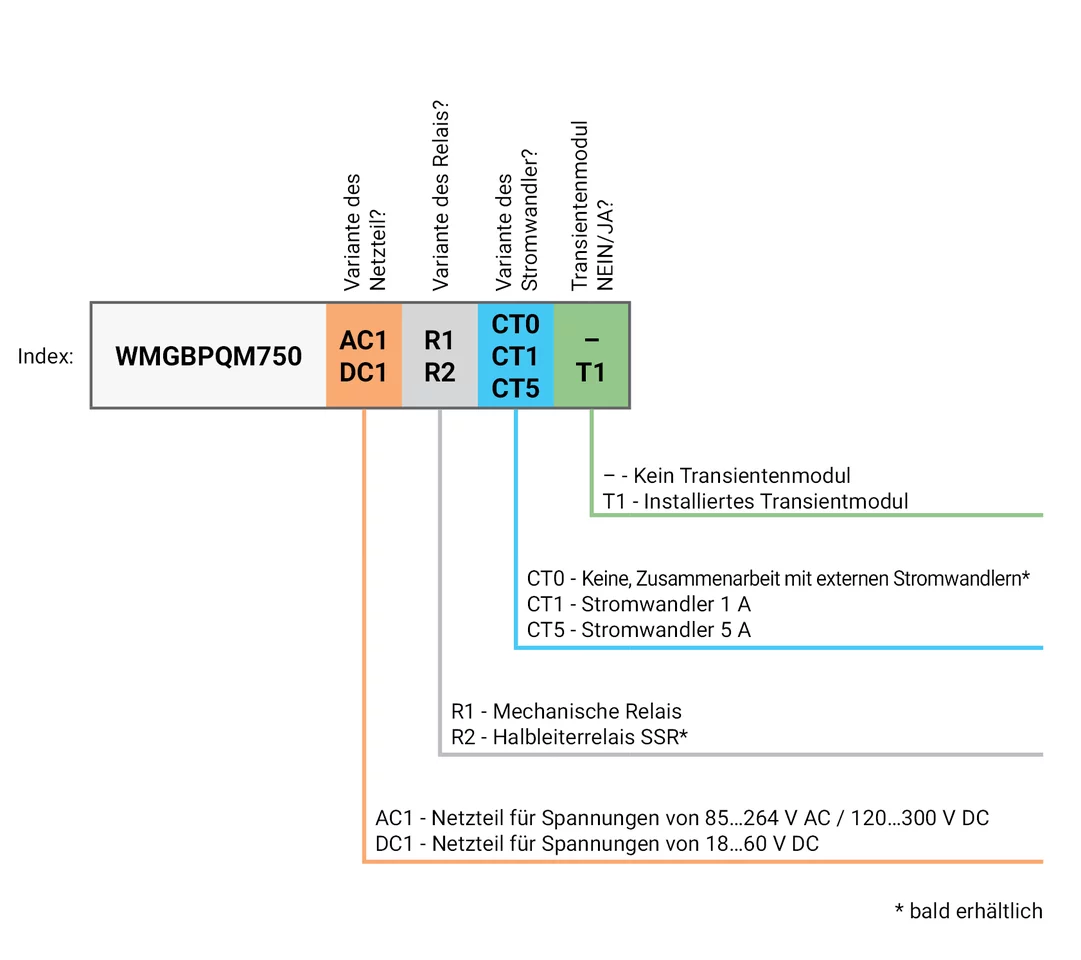

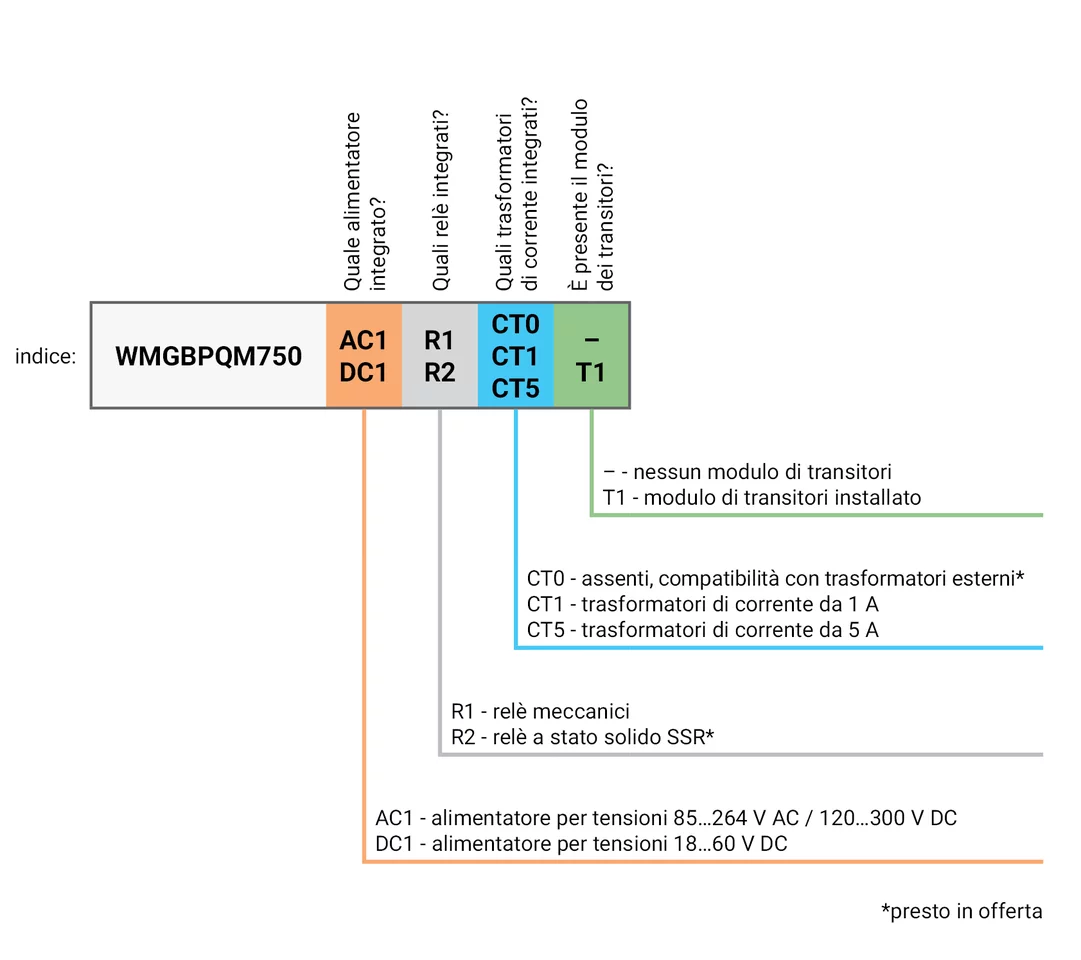

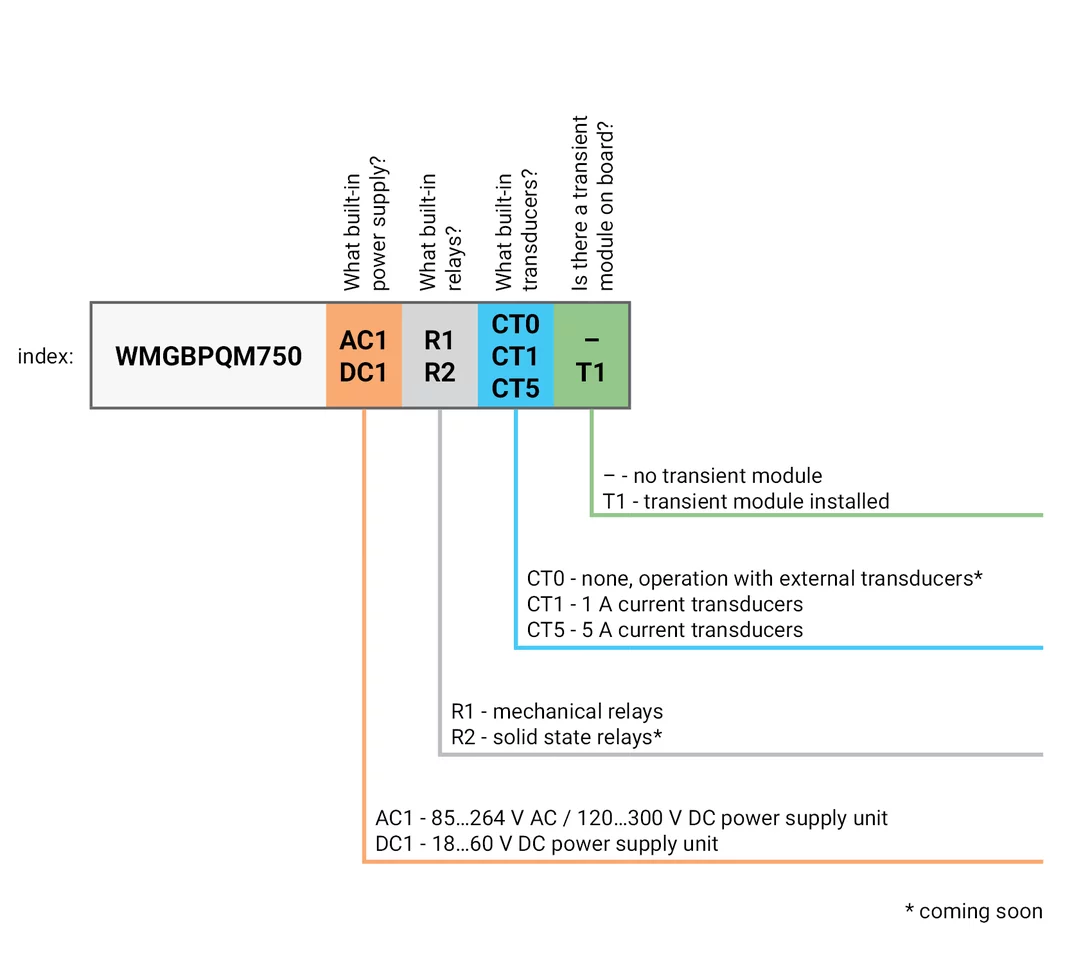

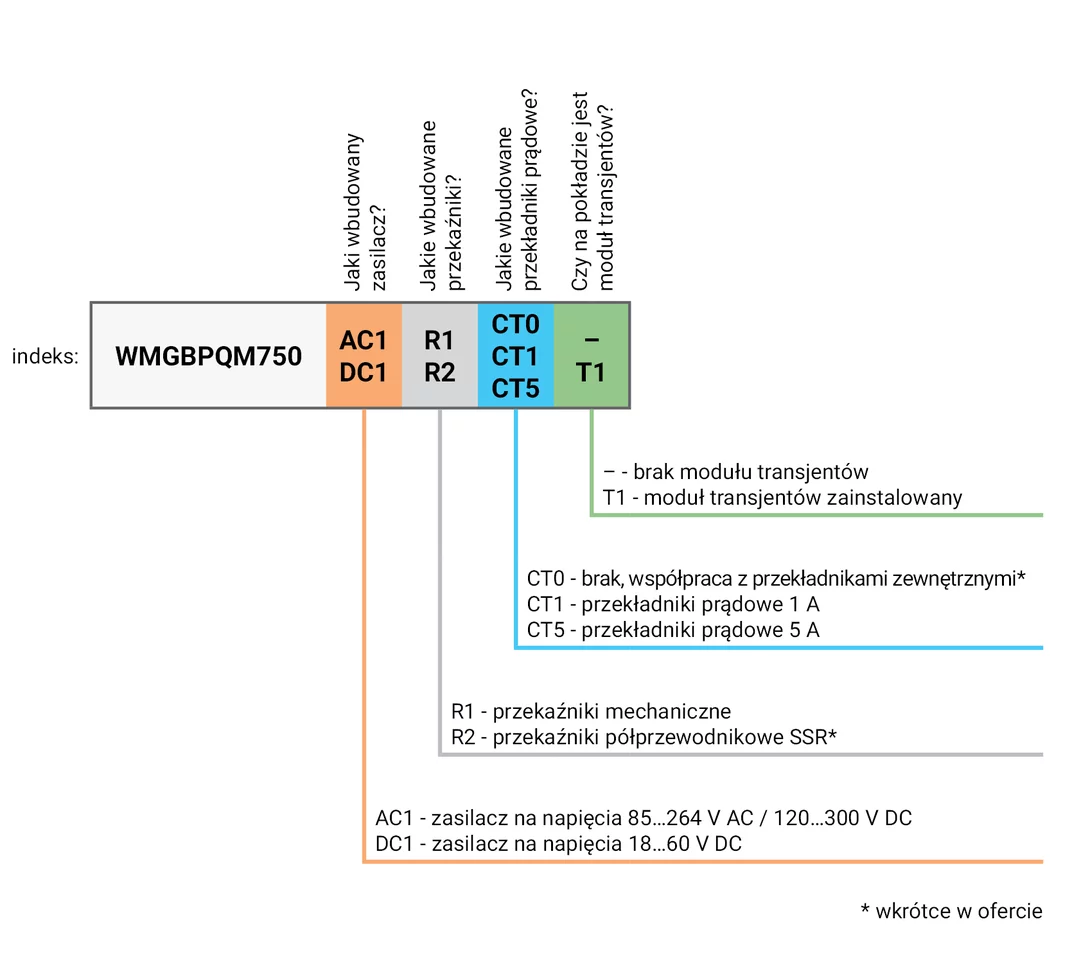

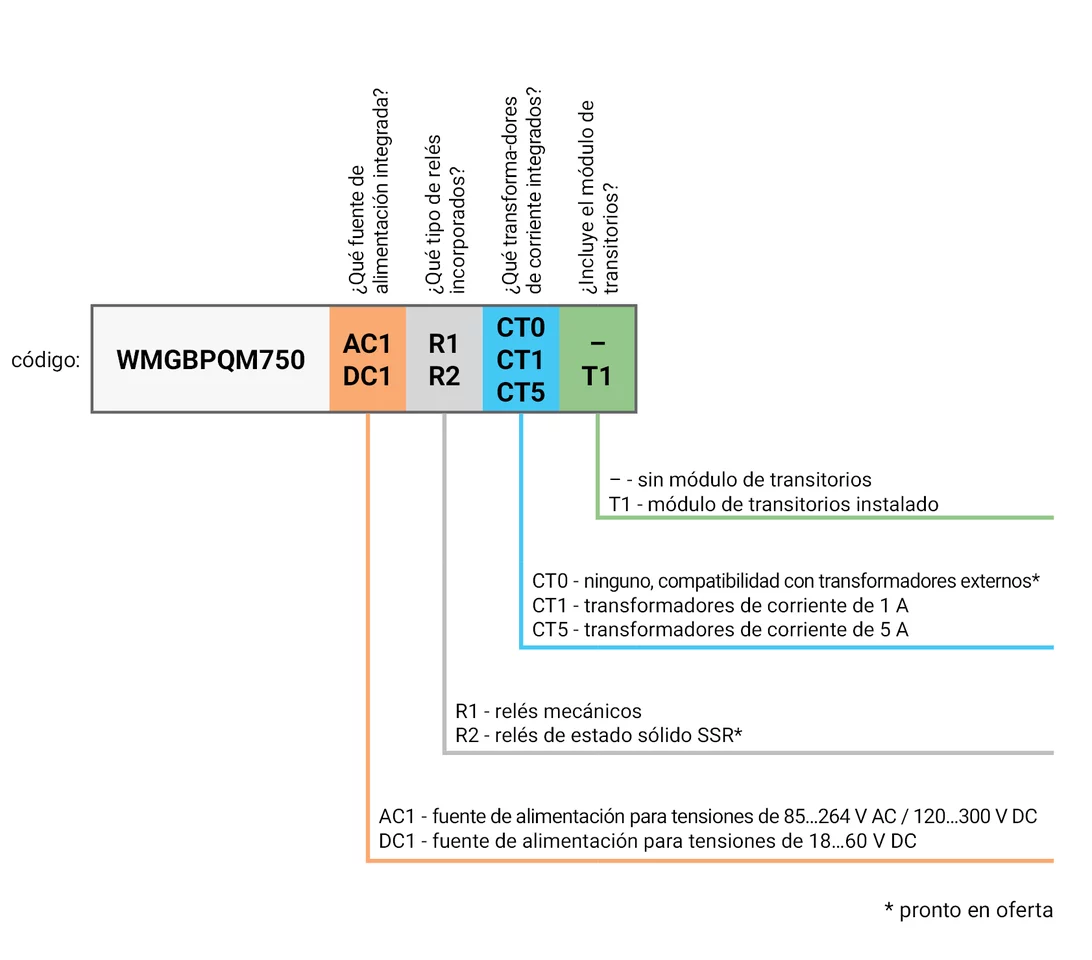

The PQM-750 can be configured in various ways. Each set of built-in internal modules is a separate sales index for the analyzer. Need help choosing a configuration? Contact our Customer Service.
|
What built-in power supply? |
What built-in relays? |
What built-in transducers? |
Is there a transient module on board? |
Index |
|
AC1 - 85…264 V AC / 120…300 V DC power supply unit |
R1 - mechanical relays |
CT1 - 1 A current transducers | No transient module | WMGBPQM750AC1R1CT1 |
| AC1 - 85…264 V AC / 120…300 V DC power supply unit | R1 - mechanical relays | CT1 - 1 A current transducers | T1 - transient module installed | WMGBPQM750AC1R1CT1T1 |
|
AC1 - 85…264 V AC / 120…300 V DC power supply unit |
R1 - mechanical relays |
CT5 - 5 A current transducers | No transient module | WMGBPQM750AC1R1CT5 |
|
AC1 - 85…264 V AC / 120…300 V DC power supply unit |
R1 - mechanical relays |
CT5 - 5 A current transducers | T1 - transient module installed | WMGBPQM750AC1R1CT5T1 |
| DC1 - 18…60 V DC power supply unit | R1 - mechanical relays | CT1 - 1 A current transducers | No transient module | WMGBPQM750DC1R1CT1 |
| DC1 - 18…60 V DC power supply unit | R1 - mechanical relays | CT1 - 1 A current transducers | T1 - transient module installed | WMGBPQM750DC1R1CT1T1 |
| DC1 - 18…60 V DC power supply unit |
R1 - mechanical relays |
CT5 - 5 A current transducers | No transient module | WMGBPQM750DC1R1CT5 |
| DC1 - 18…60 V DC power supply unit | R1 - mechanical relays | CT5 - 5 A current transducers | T1 - transient module installed | WMGBPQM750DC1R1CT5T1 |
Features
- Full class A according to IEC 61000-4-30, confirmed by a certificate from an accredited laboratory
- Voltage inputs L1, L2, L3, N, E (5 terminals)
- L1, L2, L3, N, E currents (5 current transformers)
- Built-in 5 A or 1 A current transducers, or a variant without transducers, but cooperating with external transducers*
- Possibility of indirect measurements with calculation results for the primary side
- Operation in 50 Hz, 60 Hz, 400 Hz networks

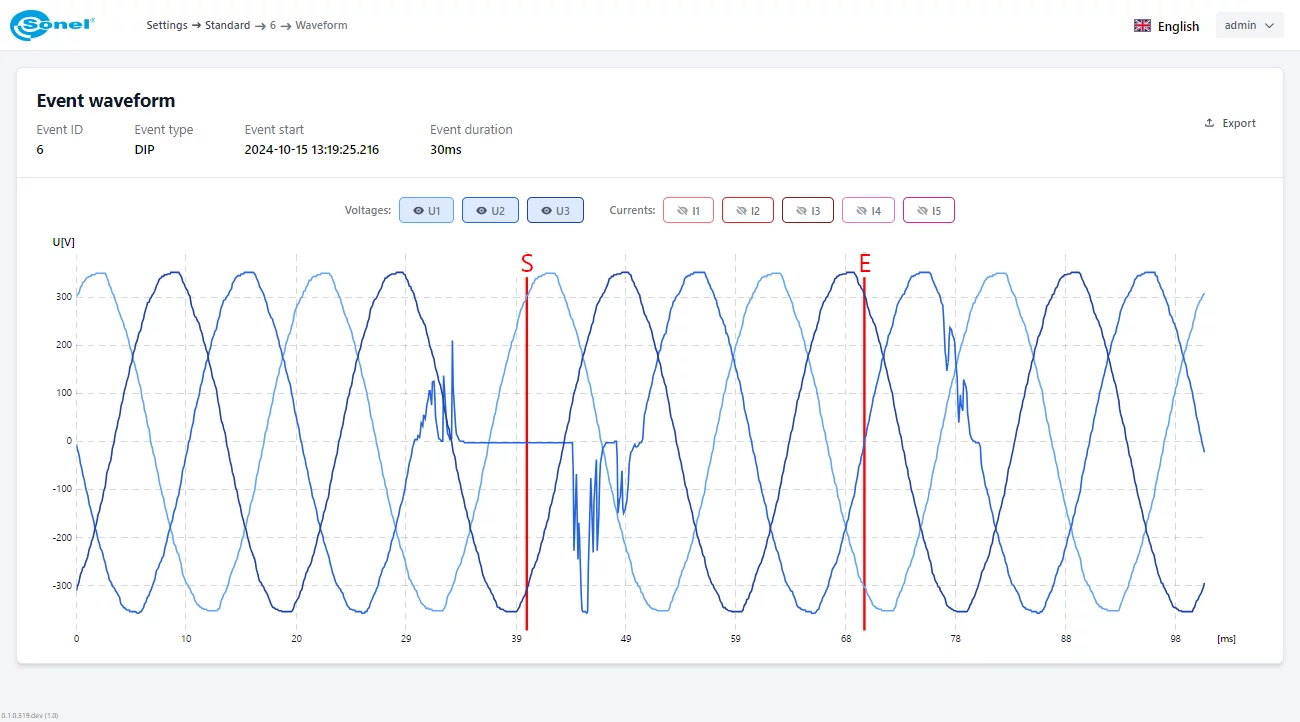

- Recording of voltage and current events along with waveforms
- Design with or without transient measurement module
- Measurement of more than 4,000 parameters
- 24-bit analog-to-digital converter
- Basic sampling rate of 80 kHz
- Conducted emissions monitoring in the 2…150 kHz band
- Two LAN ports, including one with the option of powering the meter with PoE (Power over Ethernet)
- Built-in rechargeable battery
- Two mains power supply options: built-in power supply unit 85…264 V AC (120…300 V DC) or 18…60 V DC
- 8 GB memory (microSD card)
- USB port for meter updates and data exchange
- Two binary inputs, two relay outputs, two RS-485 ports
- Relay output to monitoring analyzer operation (Watchdog)
- 1-wire input for external temperature sensors
- 2.4” touch screen

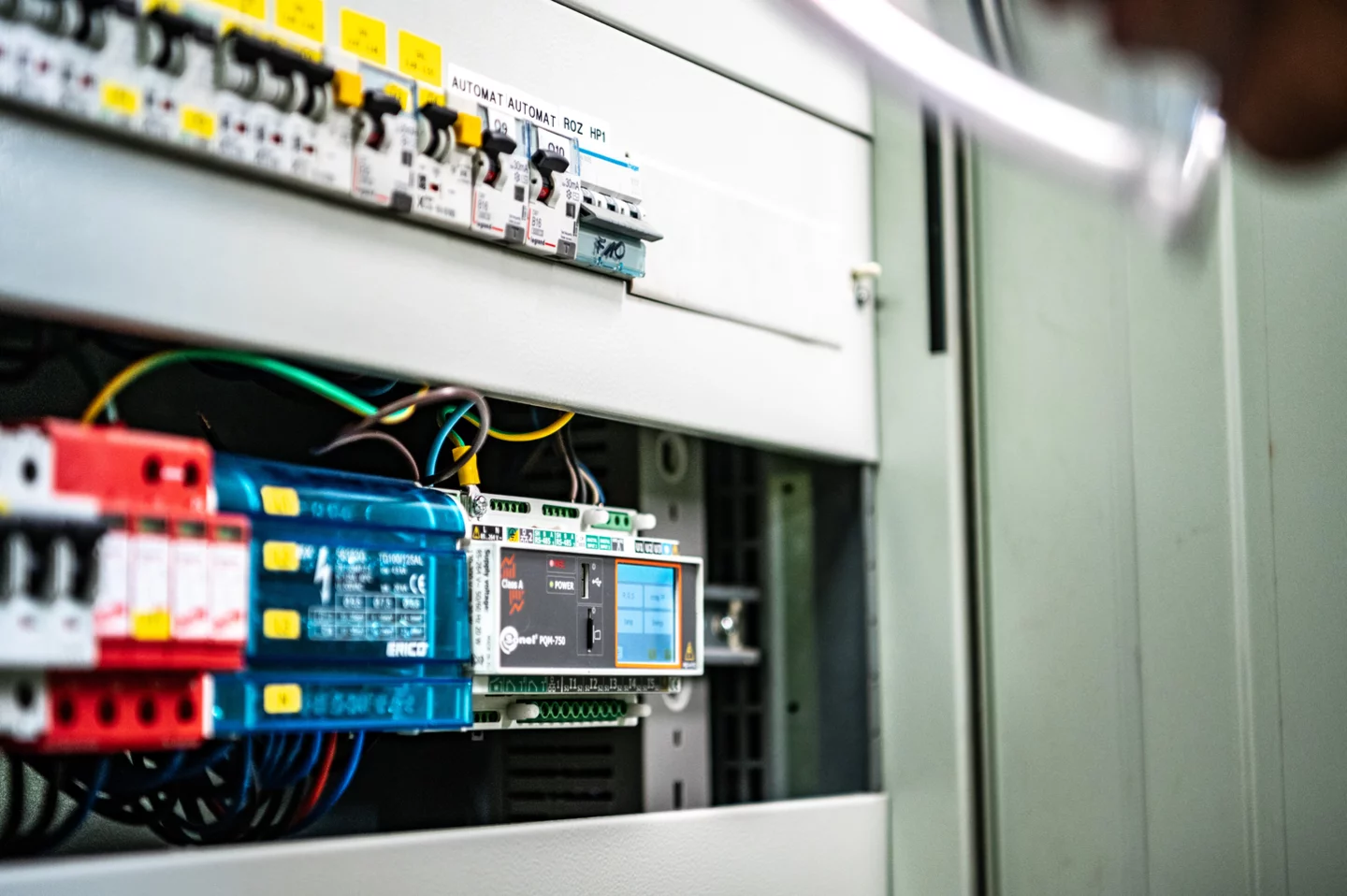

- DIN rail or wall mounting
- Expansion bus allowing connection of various external modules (e.g. GPS, LTE)

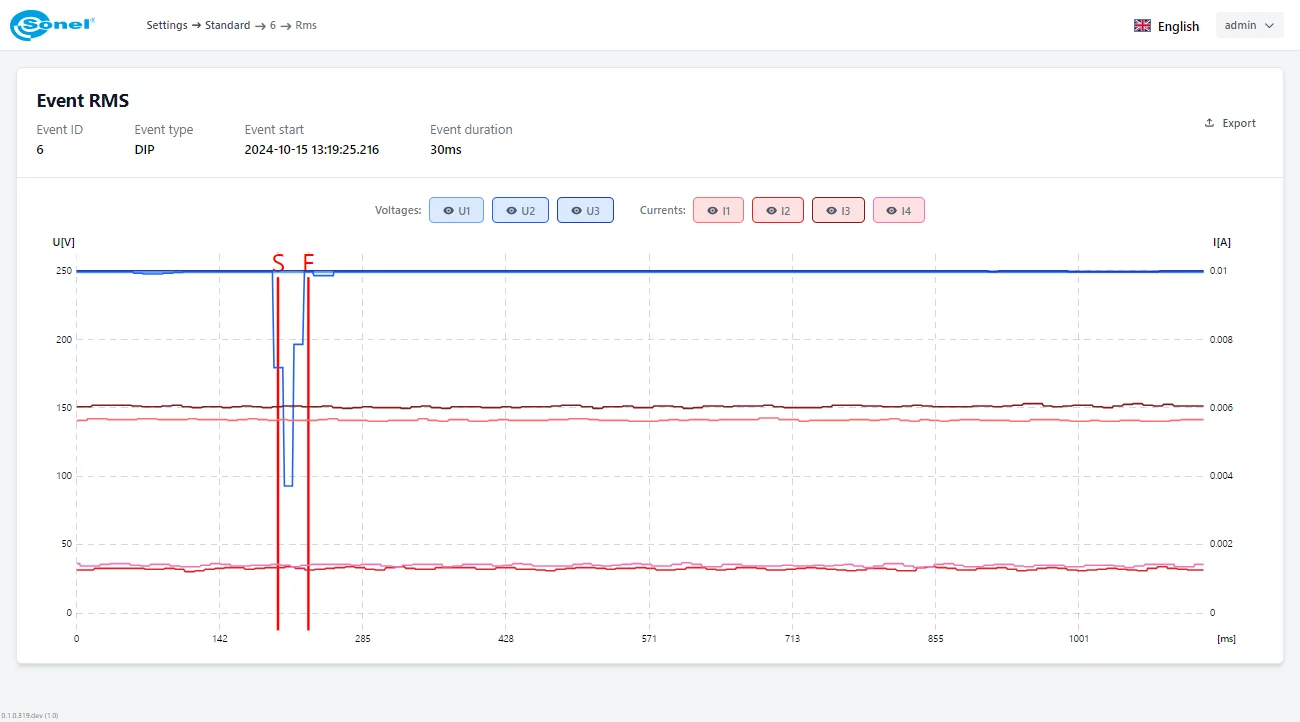

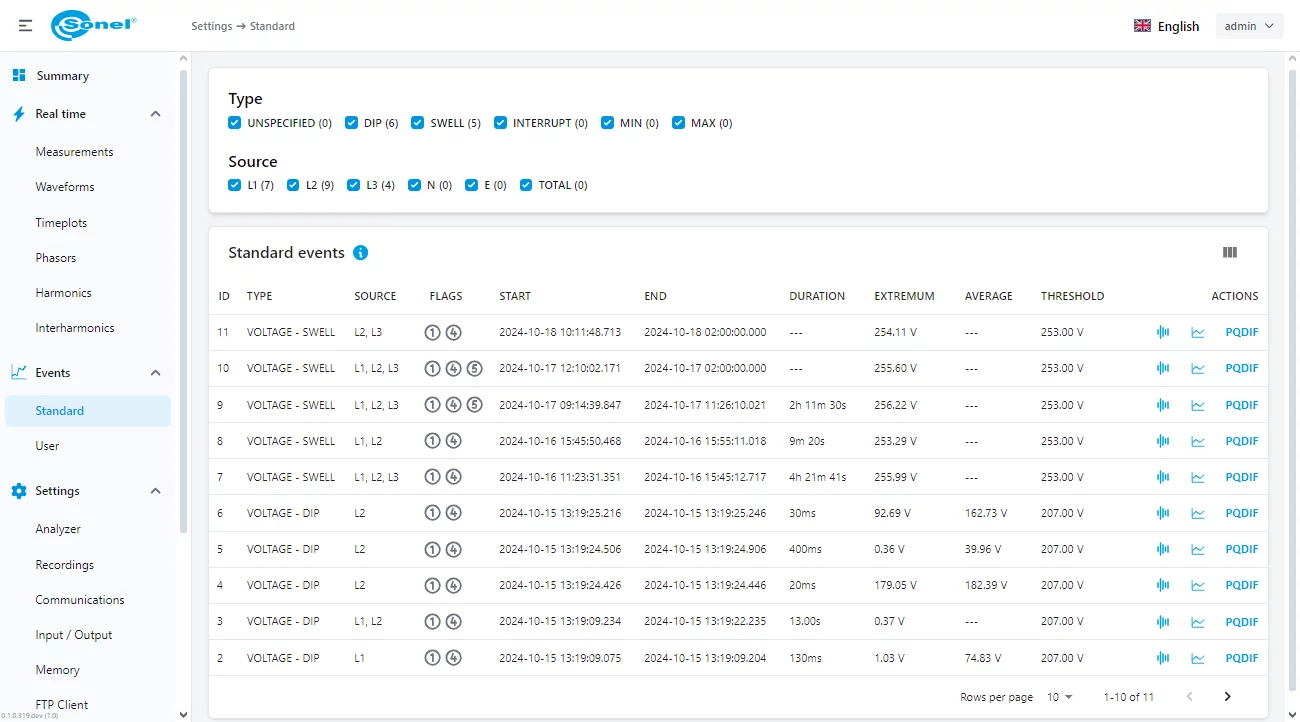

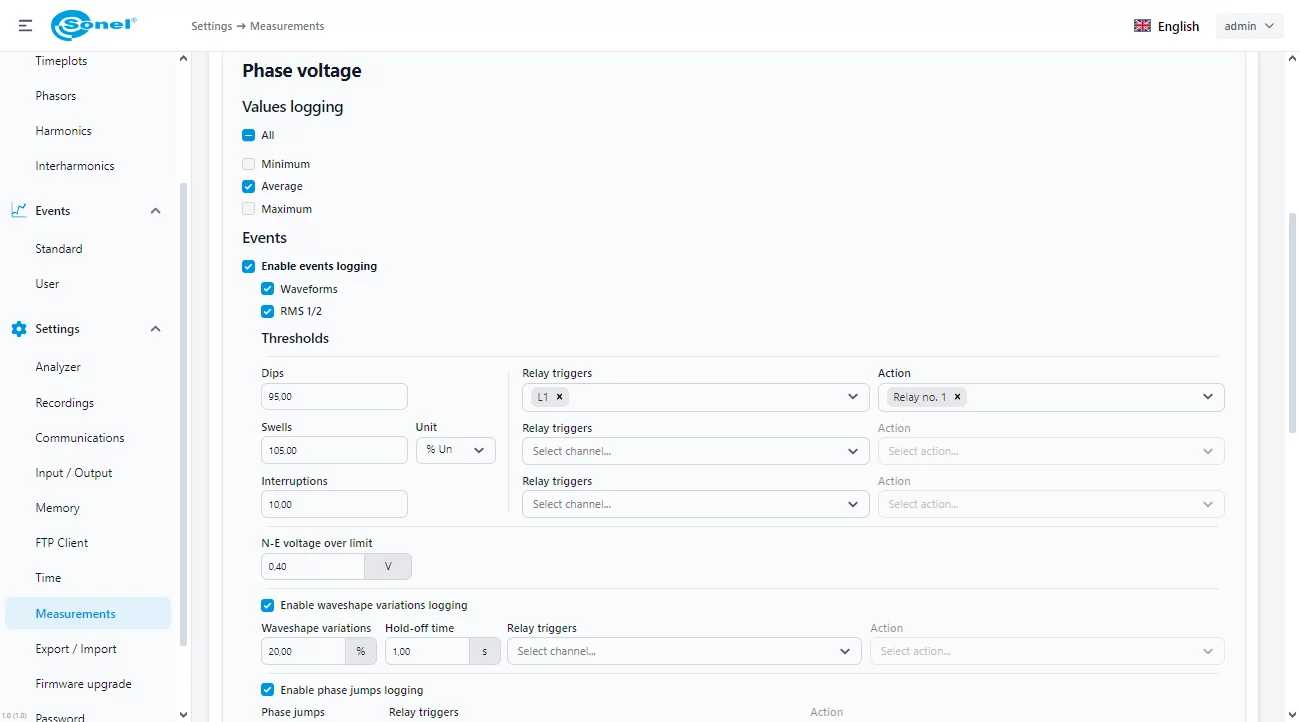

- Built-in web server for programming the meter, reading current data, viewing the list of recorded events with oscillogram/RMS display
- Time synchronization with the reference via NTP servers, IRIG-B (via built-in RS-485)
- Optional GPS module and antennas
- Measurement category CAT III 600 V (IV 300 V) for voltage inputs
- Measurement category CAT III 300 V for current inputs
- Possibility of sealing current and voltage inputs
* coming soon
Additional features
Standard transmission protocols
- Modbus TCP/IP
- Modbus RTU
- IEC 61850
- PQdif

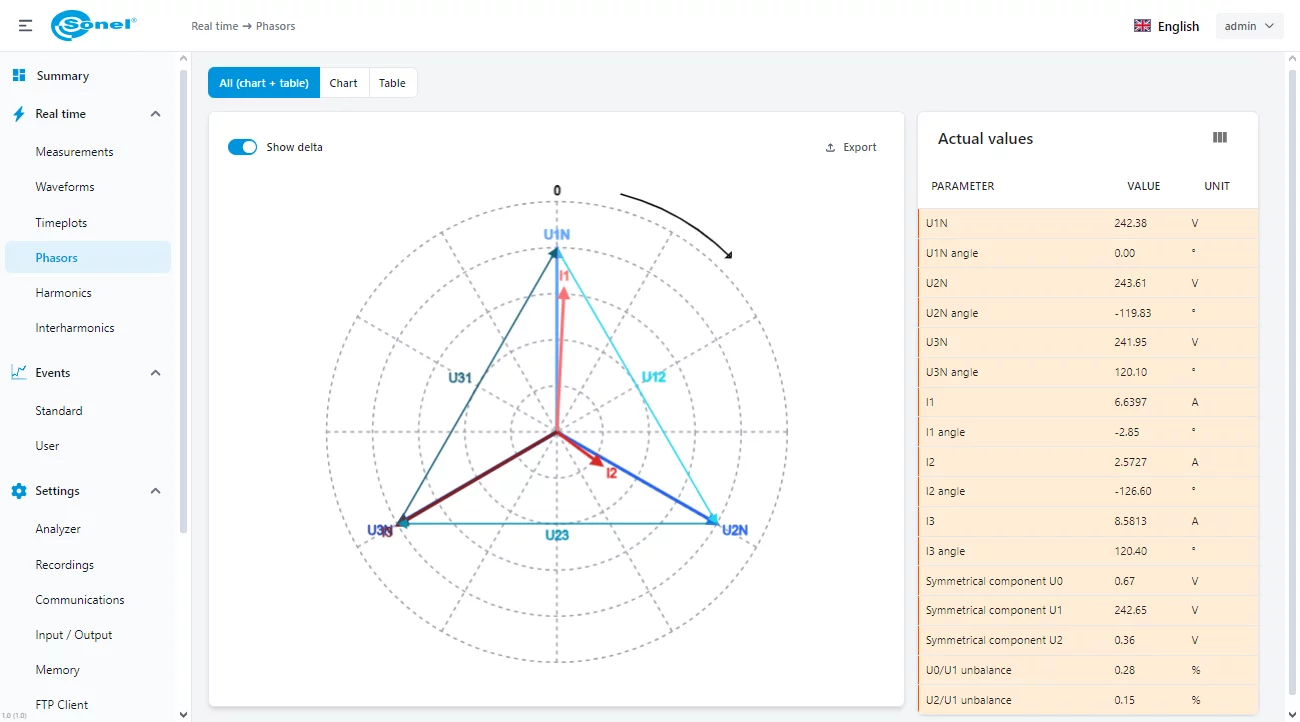

Web interface (webserver)
- Access to the interface from any web browser
Modularity
The instrument can be expanded with additional communication protocols and physical and software functionality.
- GPS module with IRIG-B output and GPS module antenna (10 m / 20 m / 30 m)
- LTE GSM module*
- I/O module*
- LCD 7” touch panel for full operation of the analyzer at the mounting location*
* coming soon
Measured parameters
Built-in software (web interface – webserver) allows you to configure the device and view actual data. It allows measurement of the following parameters.
- Phase RMS voltage U for L1, L2, L3+N/PE
- Phase-to-phase RMS voltages U for L12, L23, L31
- RMS currents I of all phases + N + PE
- Crest factor CF of voltages and currents
- Network frequency f for L1
- Active power P for L1, L2, L3
- Active power P1 (separated 50 Hz) for L1, L2, L3
- Reactive power Q for L1, L2, L3
- Reactive power Q1 (separated 50 Hz) for L1, L2, L3
- Apparent power S for L1, L2, L3
- Apparent power S1 (separated 50 Hz) for L1, L2, L3
- Three-phase total power P3F, Q3F, S3F
- Three-phase total power P13F, Q13F, S13F
- cosφ for L1, L2, L3, cosφ3F
- Power factor PF for L1, L2, L3, PF3F
- tgφ for L1, L2, L3, tgφ3F
- Distortion power D for L1, L2, L3
- Three-phase total distortion power D3F
- Distortion power factor DPF for L1, L2, L3
- Shape of phase voltages and currents for events
- Phase diagrams for currents and voltages
- Active energy for L1, L2, L3 – taken EP+ or given EP-.
- Three-phase active energy – drawn EP3F+ or given EP3F-
- Inductive reactive energy for L1, L2, L3 for consumption – EQL+
- Capacitive reactive energy for L1, L2, L3 for consumption – EQC+
- Three-phase reactive energy for consumption – inductive EQL3F+ and capacitive EQC3F+
- Apparent energy for L1, L2, L3 – ES
- Three-phase apparent energy ES3F
- Harmonics hn to 256th in current and voltage
- Interharmonics up to 256th in current and voltage
- Angles between current and voltage harmonics
- Monitoring of 2…150 kHz bandwidth
- UDC phase voltage components
- Shares of harmonic currents and voltages in relation to RMS value (%) – hnR
- Shares of harmonic currents and voltages in relation to the fundamental harmonic h1 (%) – hnF
- THDR for voltages and currents calculated against RMS value (%)
- THDF for voltages and currents calculated relative to the fundamental harmonic (%)
- TIDR for voltages and currents calculated against RMS value (%)
- TIDF for voltages and currents calculated relative to the fundamental harmonic (%)
- Active and reactive harmonic powers
- K-factor for I1, I2, I3, IN
- Factor K (Europe)
- Symmetrical voltage components: zero U0, direct U1, inverse U2
- Voltage values (V, %) of harmonic components of the order compatible (1, 4, 7,…), opposite (2, 5, 8,…), zero (3, 6, 9,…)
- Symmetrical components of current: zero I0, direct I1, inverse I2
- Values of currents (A, %) of harmonic components of the order direct (1, 4, 7,…), inverse (2, 5, 8,…), zero (3, 6, 9,…)
- Short-term light flicker factor Pst
- Long-term light flicker factor Plt
- Voltage unbalance
- Current unbalance
- Transients U up to 6000 V
- Ripple control signals
- Temperatures: Tw (analyzer internals), Tz1…Tz4 (1-wire)
Standards
Made in class A of the IEC 61000-4-30 standard, the instrument is compliant:
- Product standards:
- IEC 62586-1 – Power quality measurement in power supply systems – Part 1: Power quality instruments (PQI)
- IEC 62586-2 – Power quality measurement in power supply systems – Part 2: Functional tests and uncertainty requirements
- Standards for measuring network parameters:
- IEC 61000-4-30 – Electromagnetic compatibility (EMC) – Testing and measurement techniques – Power quality measurement methods
- IEC 61000-4-7 – Electromagnetic compatibility (EMC) – Testing and Measurement Techniques – General Guide on Harmonics and Interharmonics Measurements and Instrumentation for Power Supply Systems and Equipment Connected thereto
- IEC 61000-4-15 – Electromagnetic compatibility (EMC) – Testing and Measurement Techniques – Flickermeter – Functional and Design Specifications
- EN 50160 – Voltage characteristics of electricity supplied by public electricity networks
- Safety standards:
- IEC 61010-1 – Safety requirements for electrical equipment for measurement control and laboratory use. Part 1: General requirements
- IEC 61010-2-030 – Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 2-030: Particular requirements for equipment having testing or measuring circuits
- Standards for electromagnetic compatibility:
- EN 55032 – Electromagnetic compatibility of multimedia equipment – Emission Requirements
- IEC 61000-6-5 – Electromagnetic compatibility (EMC) – Part 6-5: Generic standards – Immunity for equipment used in power station and substation environment
Характеристики
Parameters
| Parameter | Measuring range | Max. resolution | Accuracy |
|---|---|---|---|
| Alternating voltage (TRMS) UL-L MAX = 2000 V for UL-E MAX = 1000 V |
0.0…1000.0 V | 4 significant digits | ±0.1% Udin |
| Crest Factor | |||
| Voltage | 1.0…6.5 (1.65 for voltage of 690 V) | 0.01 | ±5% |
| Current | 1.00…10.00 | 0.01 | ±5% |
| Alternating current (TRMS) | 0…20 A | 4 significant digits | ±0.2% |
| Frequency | |||
| 50 Hz and 60 Hz mains | 40.000…70.000 Hz | 0.001 Hz | ±0.01 Hz |
| 400 Hz mains | 340.00…460.00 Hz | 0.01 Hz | ±0.1 Hz |
| Active power IEC 62053-22 class 0,2S |
depending on voltage and current ratio | 4 significant digits | ±0.2% |
| Reactive power IEC 62053-24 class 0,5S |
depending on voltage and current ratio | 4 significant digits | ±0.5% |
| Apparent power | depending on voltage and current ratio | 4 significant digits | ±0.2% |
| Active energy IEC 62053-22 class 0,2S |
depending on voltage and current ratio | 4 significant digits | ±0.2% |
| Reactive energy IEC 62053-24 class 0,5S |
depending on voltage and current ratio | 4 significant digits | ±0.5% |
| Apparent energy | depending on voltage and current ratio | 4 significant digits | ±0.2% |
| cosφ and power factor (PF) | -1.000…1.000 | 0.001 | 0.05 |
| tanφ | -10.000…10.000 | 0.001 | depends on error of active and reactive power |
| Harmonics and interharmonics | |||
| Voltage | DC, 0…256 | 4 significant digits | ±0.05% Udin for m.v. < 1% Udin ±5% m.v. for m.v. ≥ 1% Udin |
| Current | 0…256 | 4 significant digits | ±0.15% Irin for m.v. < 3% Irin ±5% m.v. for m.v. ≥ 3% Irin |
| THD-F | |||
| Voltage | 0…20% | 0.01% | ±0.3% (absolute error) |
| Current | 0…100% | 0.01% | ±0.3% (absolute error) |
| Active and reactive power of harmonics | depending on voltage and current ratio | 4 significant digits | — |
| Angle between current and voltage harmonics | -180.0…+180.0° | 0.1° | ≤0.05° for n = 1 ≤1° for 2 ≤ n ≤ 60 at fnom = 50 Hz ≤4° for 61 ≤ n ≤ 256 at fnom = 50 Hz |
| K-Factor | 1.0…50.0 | 0.01 | ±10% |
| Flicker index | 0.20…10.00 | 0.01 | ±5% |
| Unbalance factor | |||
| Voltage and current | 0.0…20.0% | 0.1% | ±0.15% (absolute error) |
| Measurement of control signals | |||
| Voltage | up to 15% Udin at fR = 5…30000 Hz | 4 significant digits | unspecified for <1% Udin ±0.15% for 1…3% Udin ±5% for 3…15% Udin |
| Emissions in band | |||
| 2…9 kHz | a single frequency that is multiple of 200 Hz | 0.01 V | ±0.1% Udin for m.v. < 2% Udin ±5% m.v. for m.v. ≥ 2% Udin |
| 8…150 kHz | a single frequency that is multiple of 2 kHz | 0.01 V | ±(5% + 0.1 V) |
m.v. – measured value
