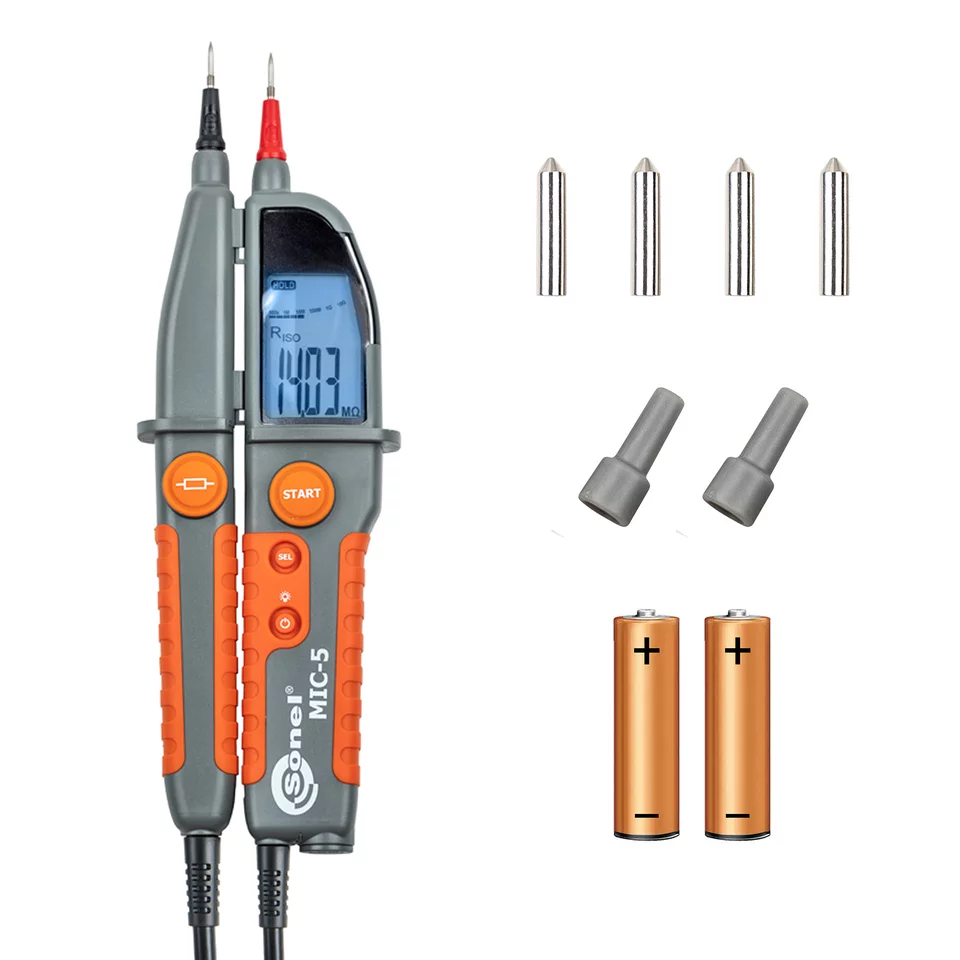

MIC-5
Insulation resistance meter
Collections
Description
Handy in insulation resistance measurements

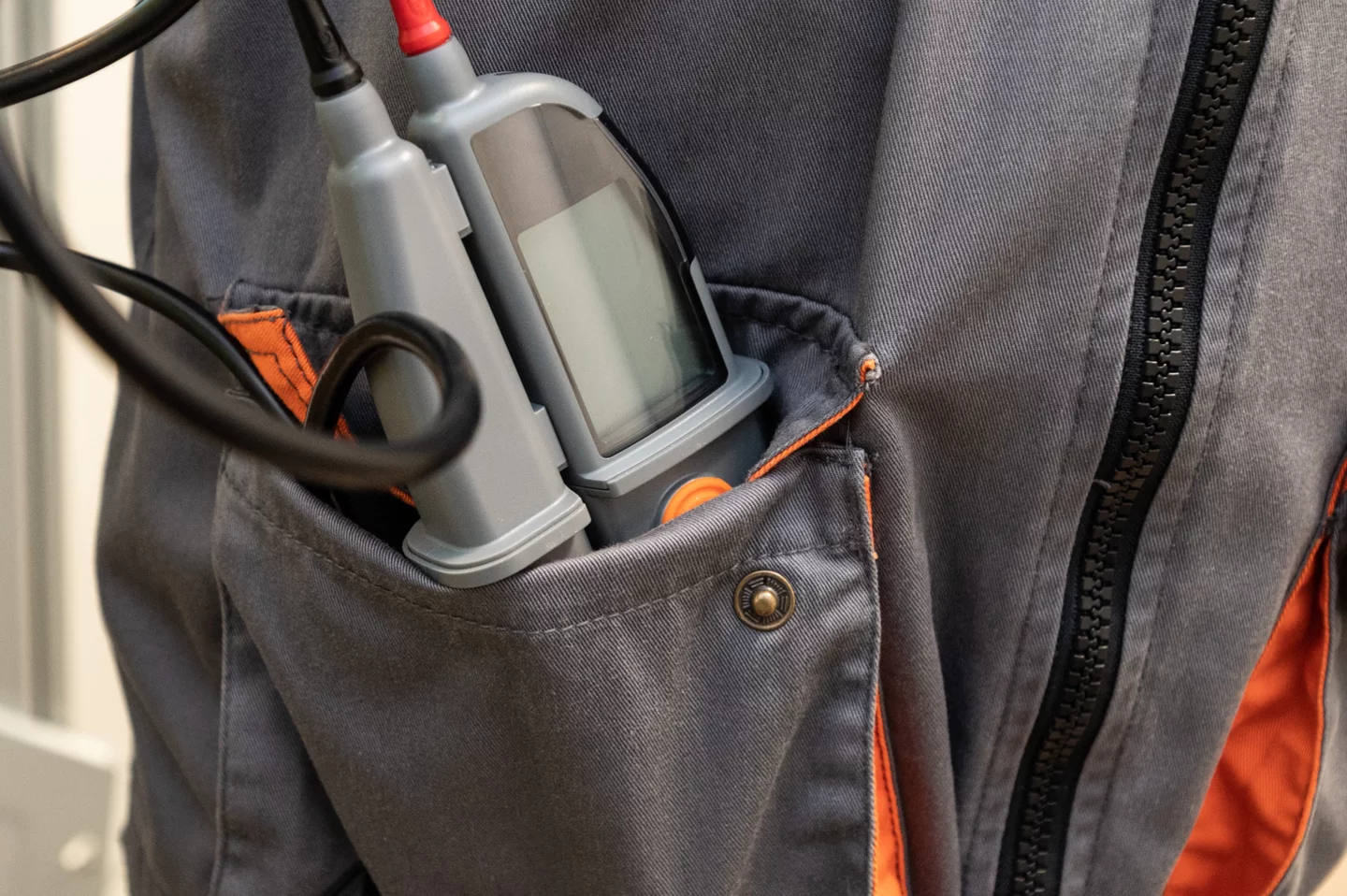

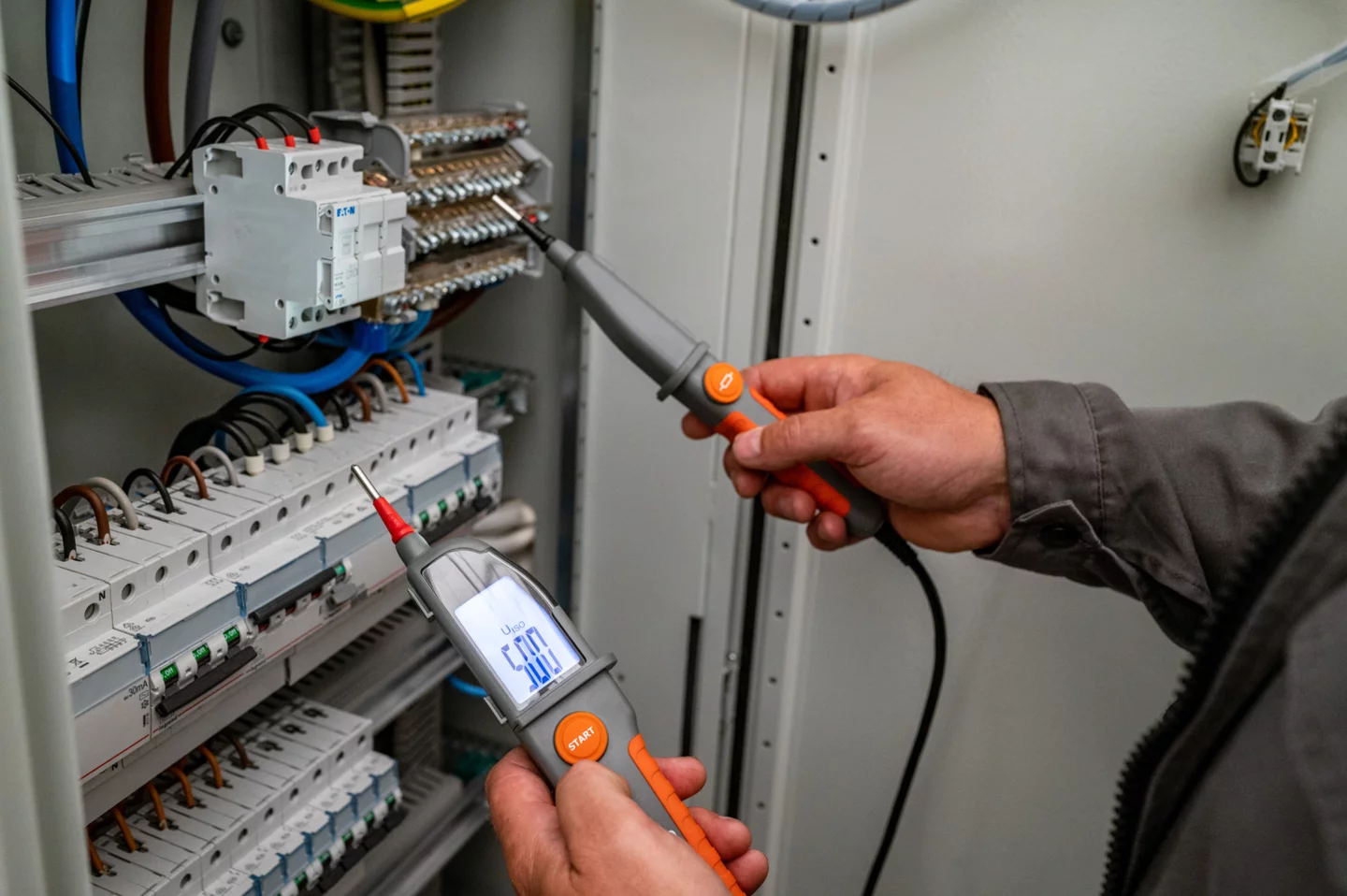

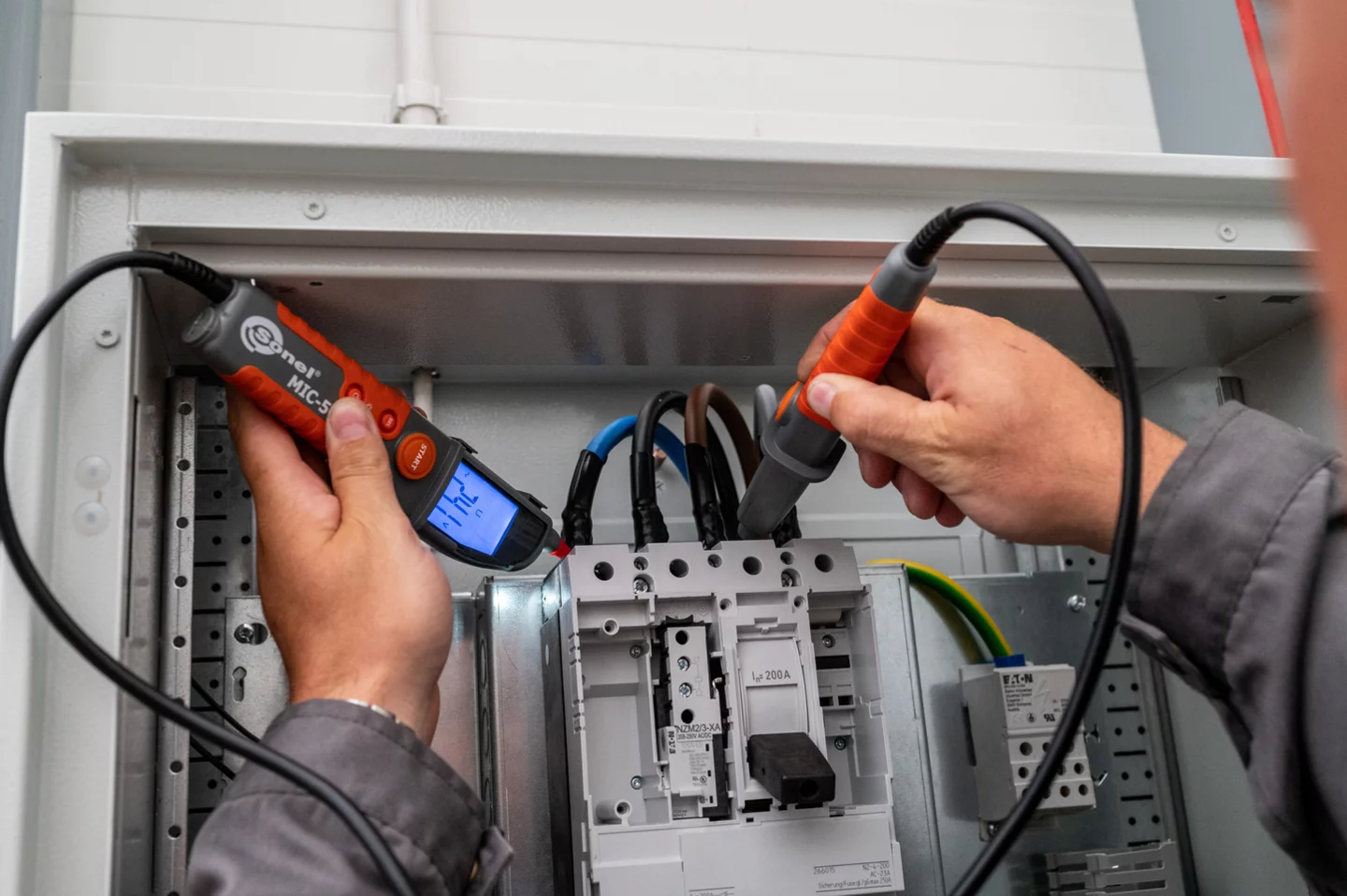

The MIC-5 is a handy insulation resistance meter that any self-respecting electrician can sling around his neck like a doctor's stethoscope in order to always have it at hand. The instrument allows for simple and quick insulation evaluation, checking continuity of connections and measuring voltage on the object.
Features

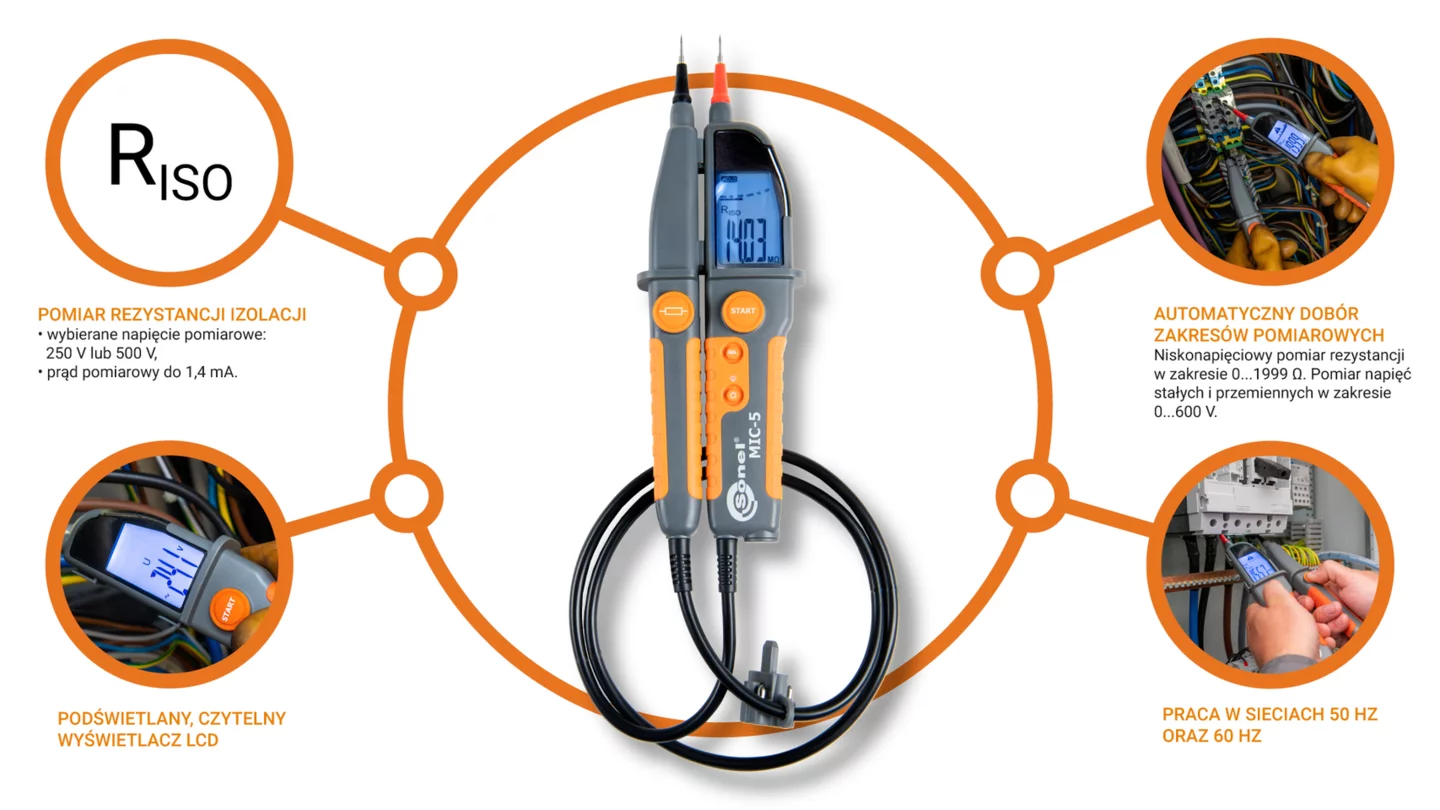

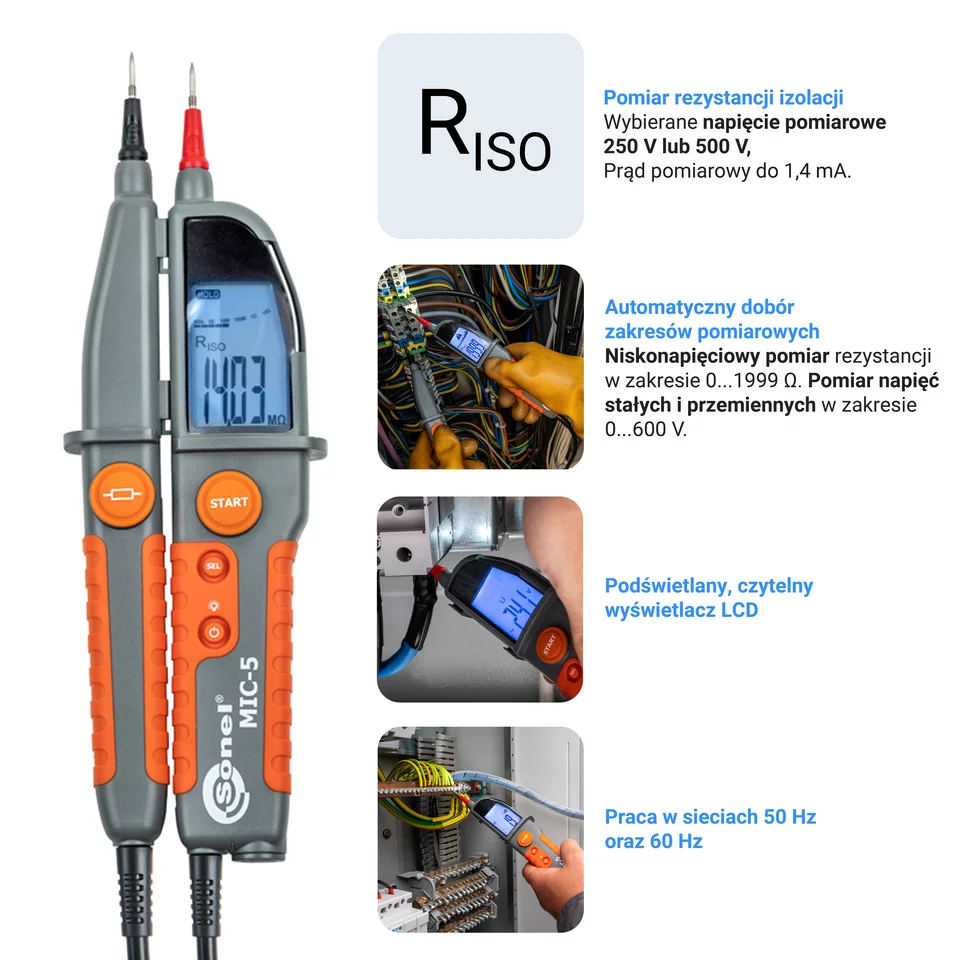

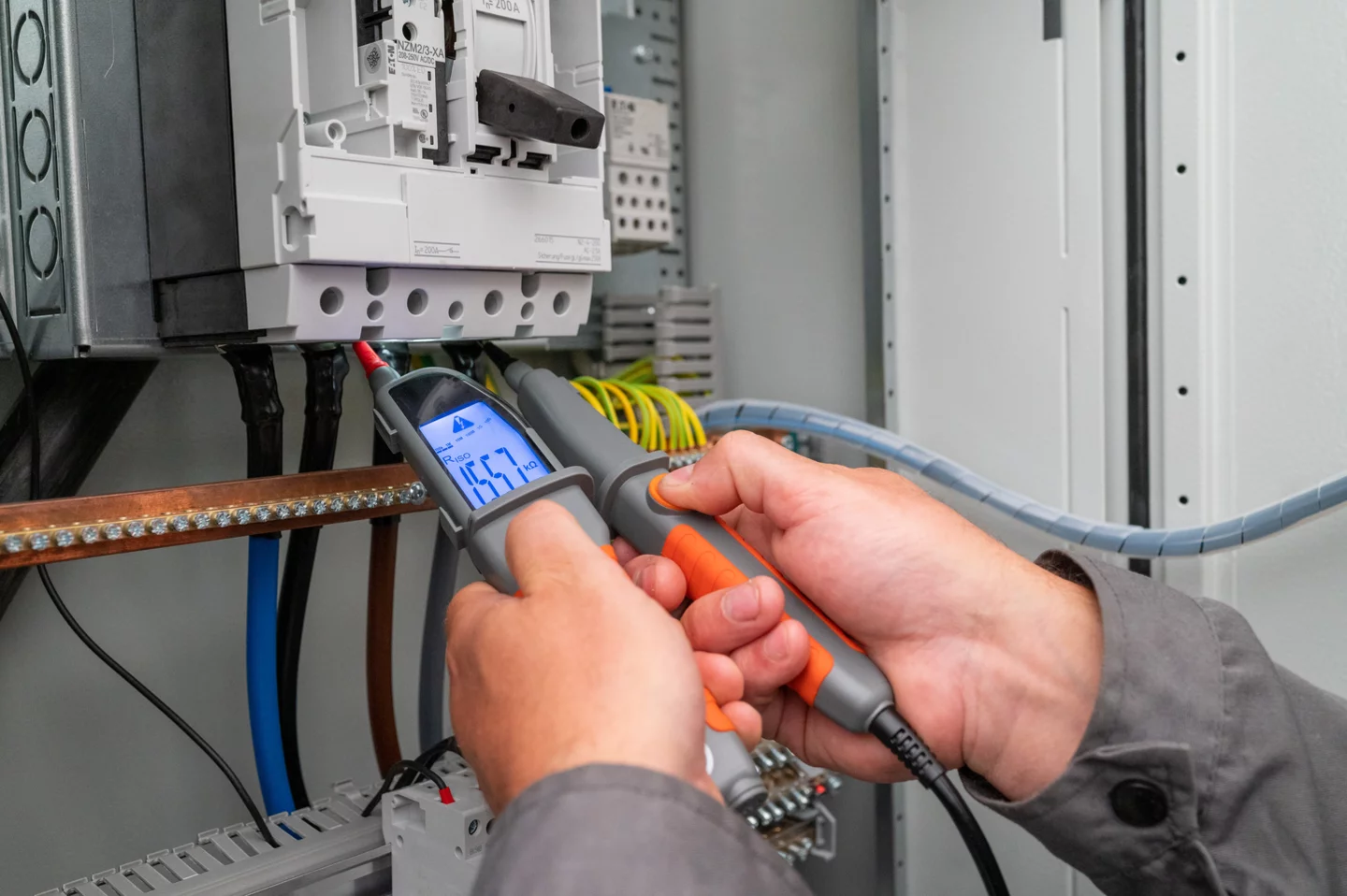

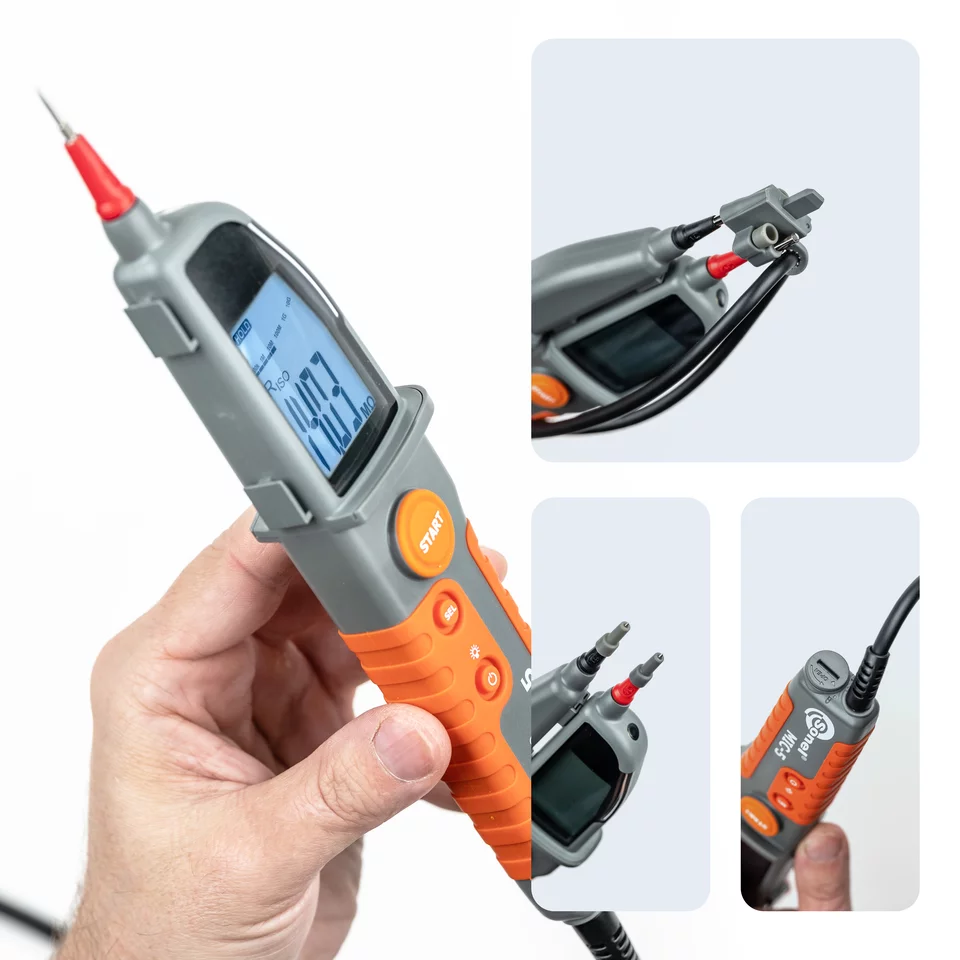

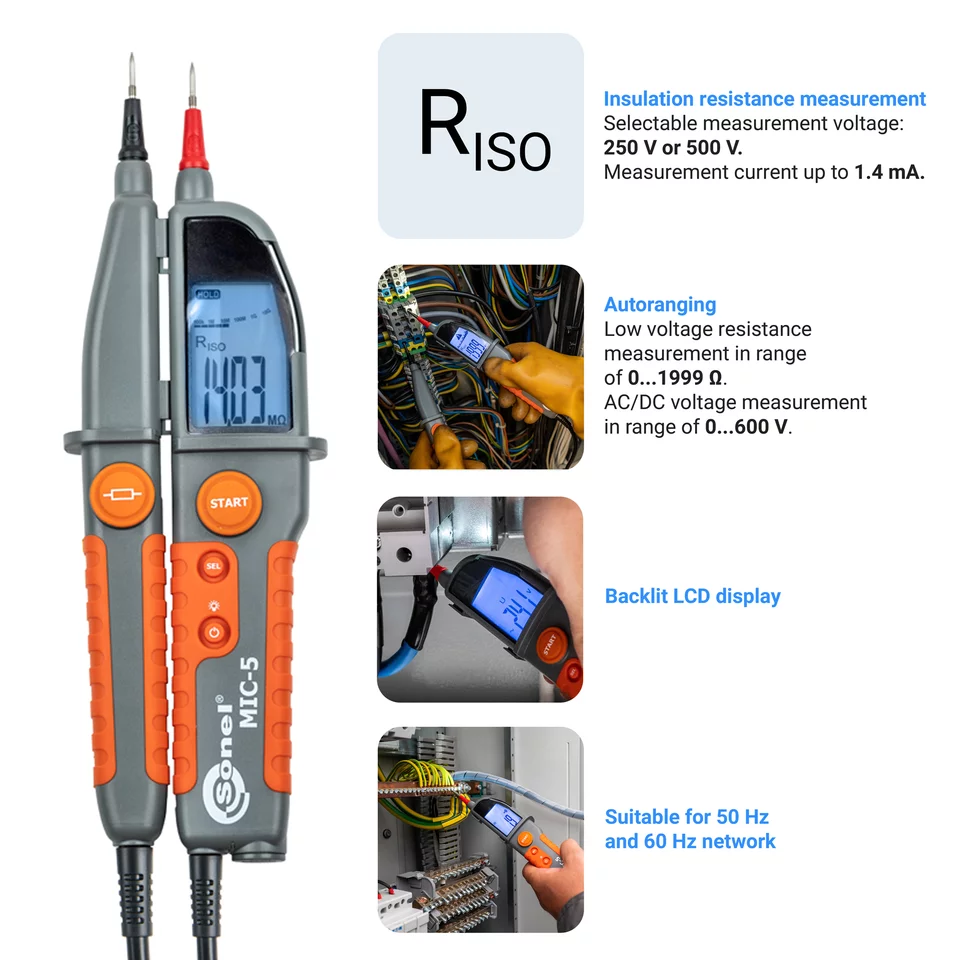

- Insulation resistance measurement:
- selectable measurement voltage: 250 V or 500 V,
- continuous indication of measured resistance,
- very long operation time with one set of batteries: 14 h for measurement at UISO = 250 V, 11 h for UISO = 500 V,
- automatic discharge of tested object’s capacitance after measurement of insulation resistance,
- acoustic determination of 5 seconds time intervals that facilitates to take time characteristics during insulation resistance measurement,
- measurement current up to 1.4 mA,
- protection against measurement of live objects.

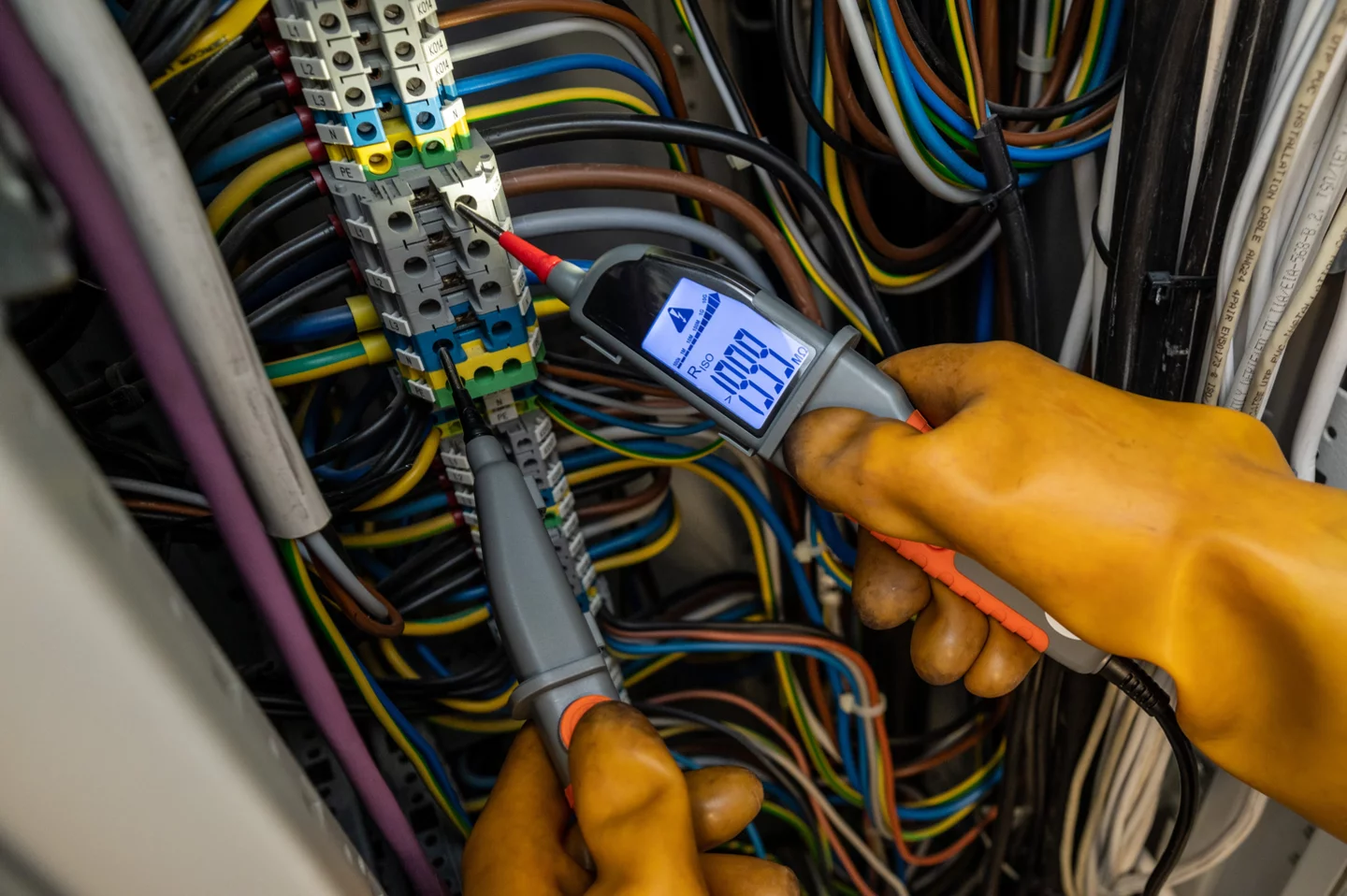

- Low voltage resistance measurement in range of 0...1999 Ω:
- measurement with current of <10 mA with resolution of 0,1 Ω,
- quick acoustic signalling for circuit resistance below 10 Ω.

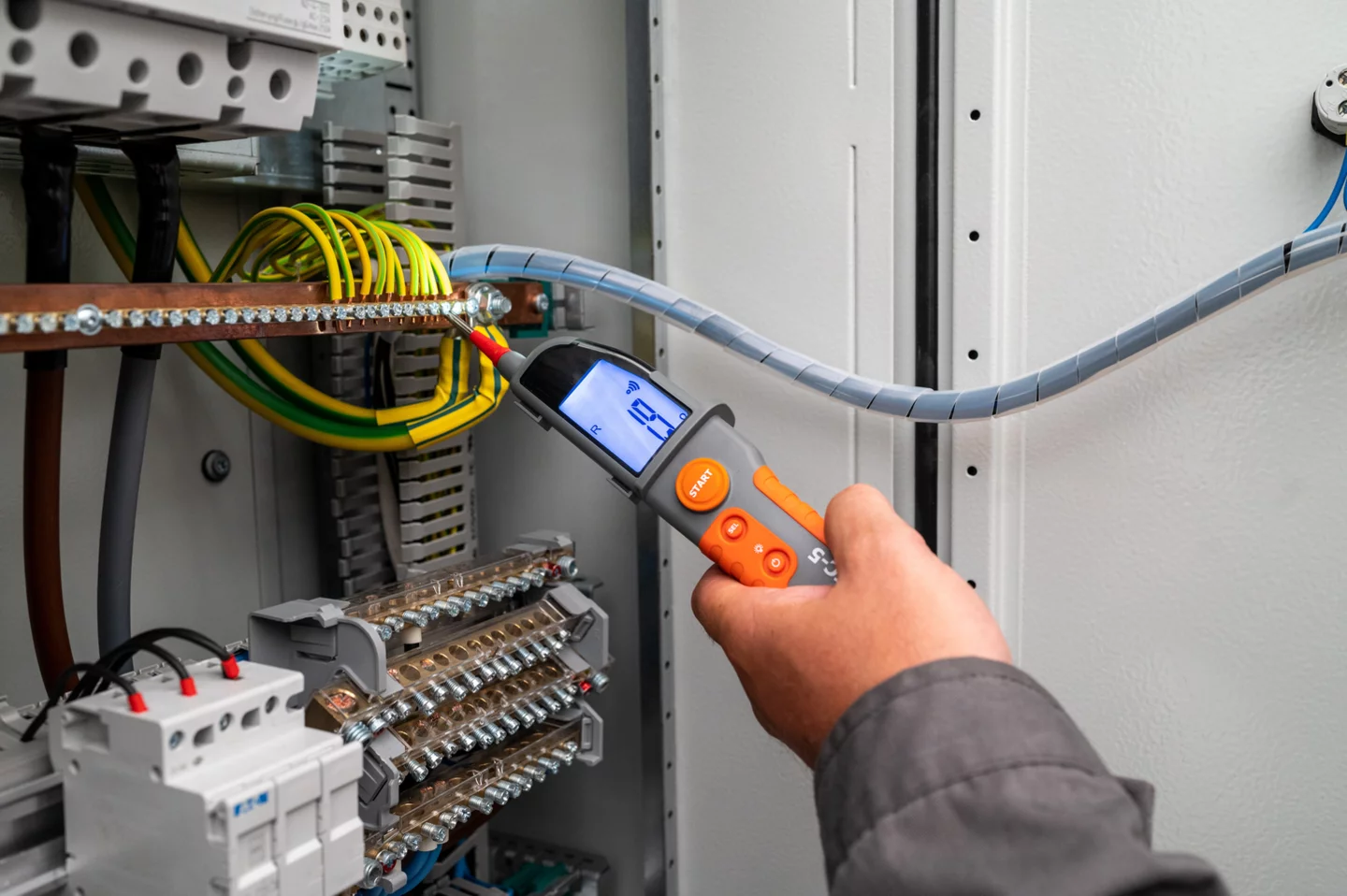

- AC/DC voltage measurement in range of 0...600 V:
- automatic detection of voltage type (AC/DC).
- Autoranging.
- Suitable for 50 Hz and 60 Hz network.
- Backlit LCD display.
- AUTO-OFF function.

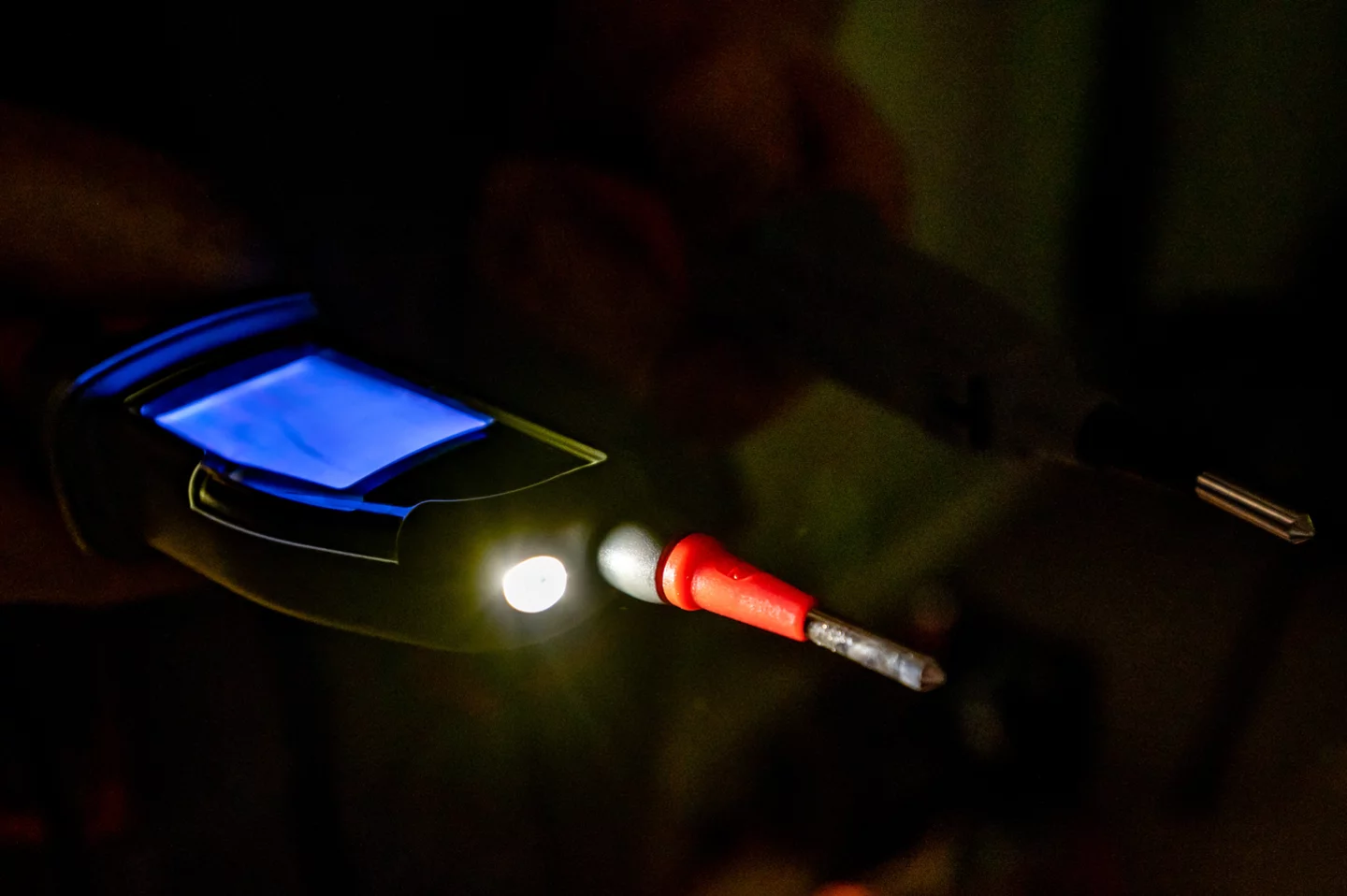

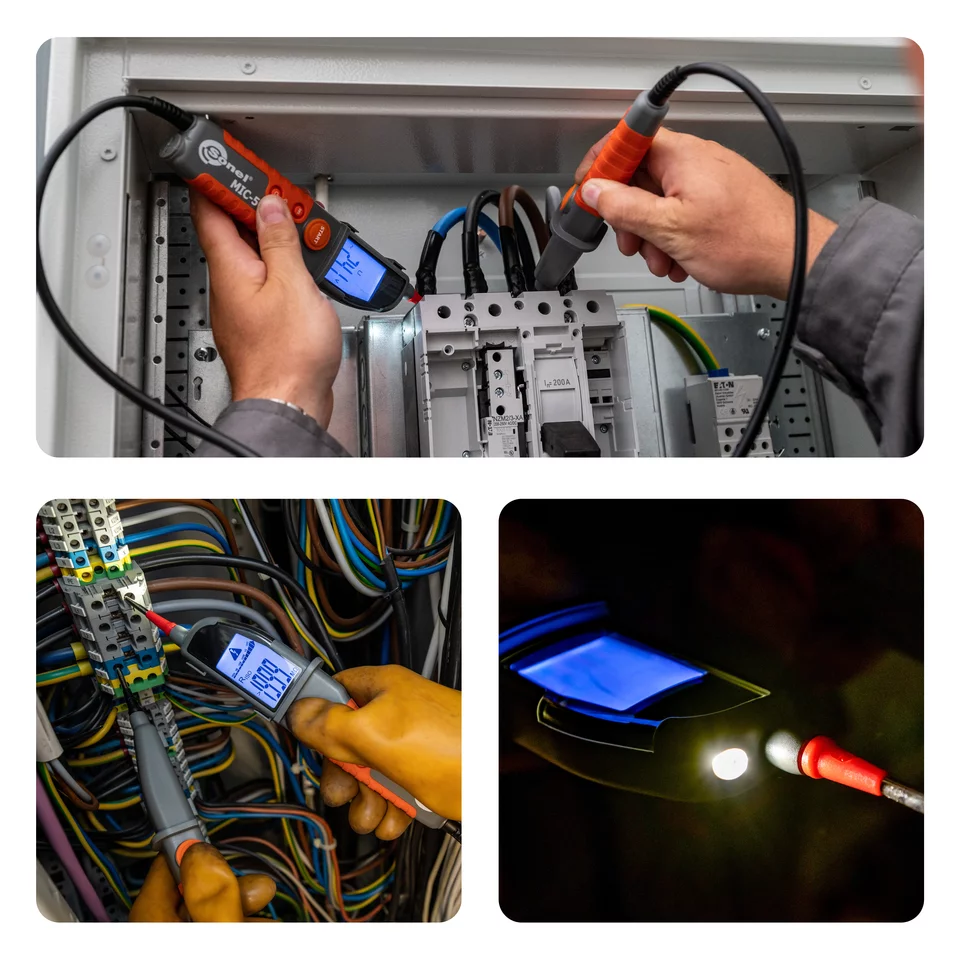

- Built-in flashlight.
- Meter meets the requirements of the standard IEC 61557-1 and IEC 61557-2.
Specifications
Technical specifications
| Measurement functions | Measurement range | Display range | Resolution | Accuracy |
|---|---|---|---|---|
| AC/DC voltage | 0 V…600 V | 0 V…600 V | 1 V | ±(3% m.v. + 2 digits) |
| Insulation resistance | ||||
| Measuring voltage 250 V | 250 kΩ…1000 MΩ acc. to IEC 61557-2 | 1 kΩ…1000 MΩ | from 1 kΩ | from ±(3% m.v. + 8 digits) |
| Measuring voltage 500 V | 500 kΩ…1999 MΩ acc. to IEC 61557-2 | 1 kΩ…1999 MΩ | from 1 kΩ | from ±(3% m.v. + 8 digits) |
| Connection resistance measurement | 0,0 Ω…1999 Ω | 0,0 Ω…1999 Ω | from 0,1 Ω | ±(4% m.v. + 3 digits) |
“m.v.” - measured value
Other technical data
Safety and work conditions
- Measuring category according to EN 61010: IV 600 V, III 1000 V
- ngress protection: IP65
- Type of insulation according to EN 61010-1 and IEC 61557: podwójna
- Power supply: 2 x AAA 1.5 V battery, 2 x NiMH AAA 1.2 V rechargeable battery
- Operating temperature: 0…+40°C
- Storage temperature: -20…+70°C
- Humidity: 20…90%
- Nominal temperature: 23 ± 2°C
- Wilgotność odniesienia: 40%…60%
Other information
- Quality standard – development, design and production: ISO 9001
- The product meets the EMC (emission for industrial environment) requirements according to standards : IEC 61326-1, IEC 61326-2-2
